160m straight half wave dipole gain versus height
Elevation plots

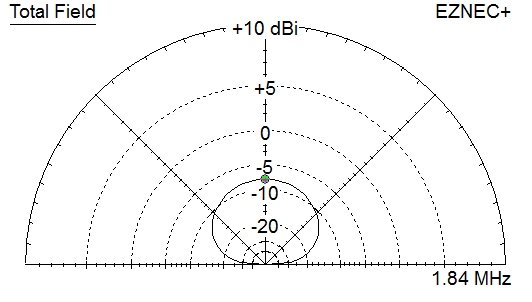

  Height 2 meters
Max gain -7.8 dBi straight up. Very low gain "bush antenna".

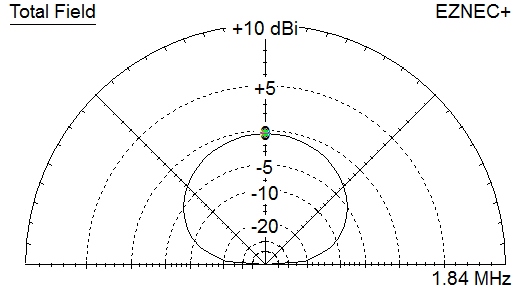

Height 5 meters
Max gain -0.4 dBi
straight up. Low gain "bush antenna".



Height 10 meters
Max gain 4.6 dBi
straight up. Reasonable gain NVIS antenna.

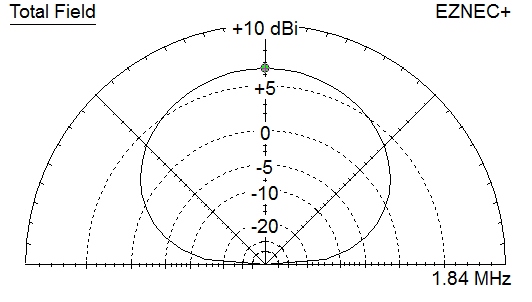

Height 15 meters
Max gain 6.5 dBi straight up. Fair NVIS antenna.

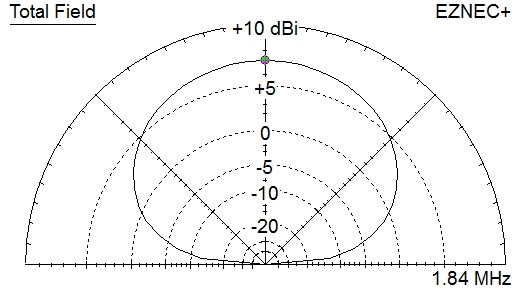

Height 20 meters
Max gain 7.2 dBi
straight up. Good NVIS antenna.

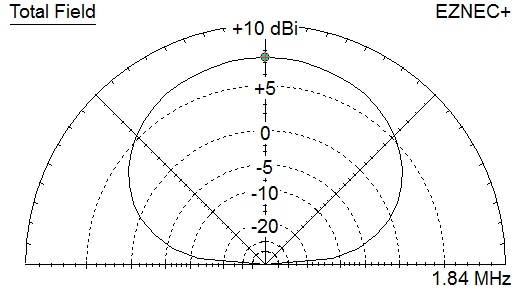

Height 25 meters
Max gain 7.4 dBi
straight up. Good NVIS antenna.



Height 30 meters
Max gain 7.4 dBi
straight up. Good NVIS antenna.



Height 35 meters
Max gain 7.2 dBi
straight up. Good NVIS antenna.



Height 40 meters
Max gain 6.8 dBi at 75 degrees.
Good NVIS and fair medium range antenna.

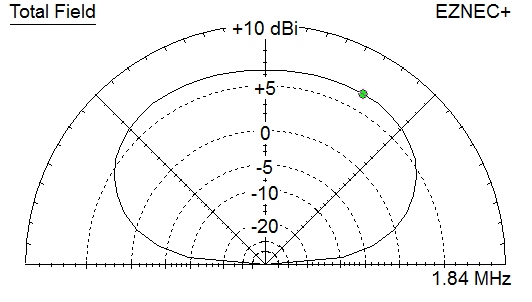

Height 45 meters
Max gain 6.6 dBi at 60 degrees.
Fair NVIS and fair medium range antenna.

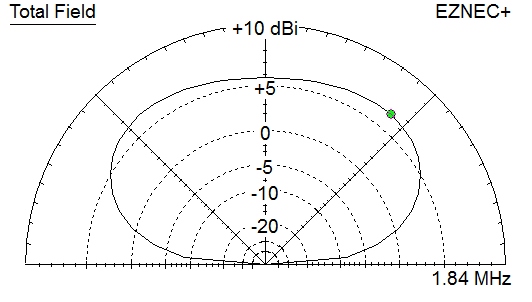

Height 50 meters
Max gain 6.5 dBi at 60 degrees.
Fair NVIS and good medium range antenna.

See 160m dipole impedance versus height here


2020-10-05 OH7SV
