50 MHz Door Frame Loop Antenna Construction Photos

Click the photos to enlarge

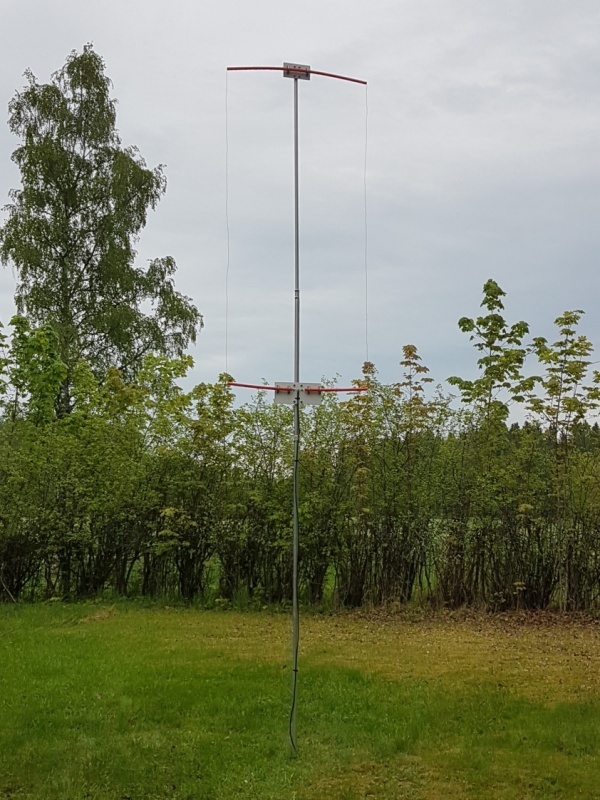

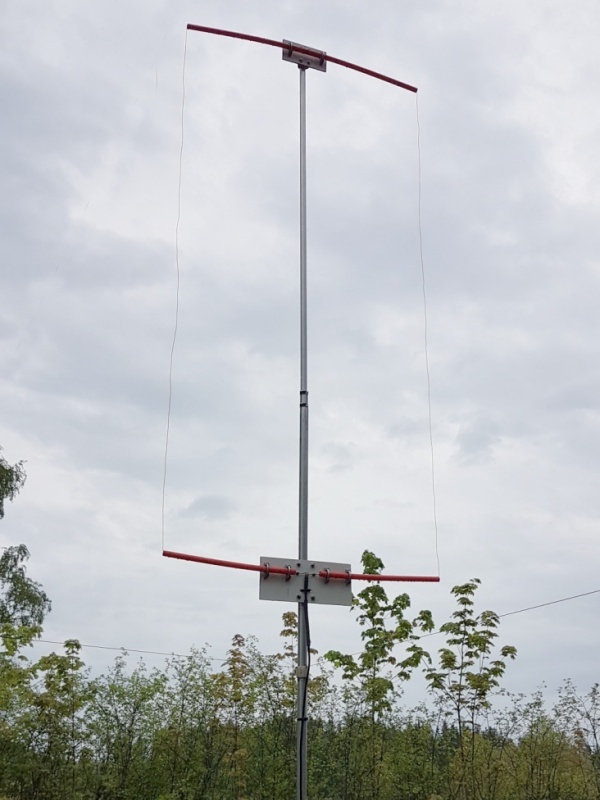

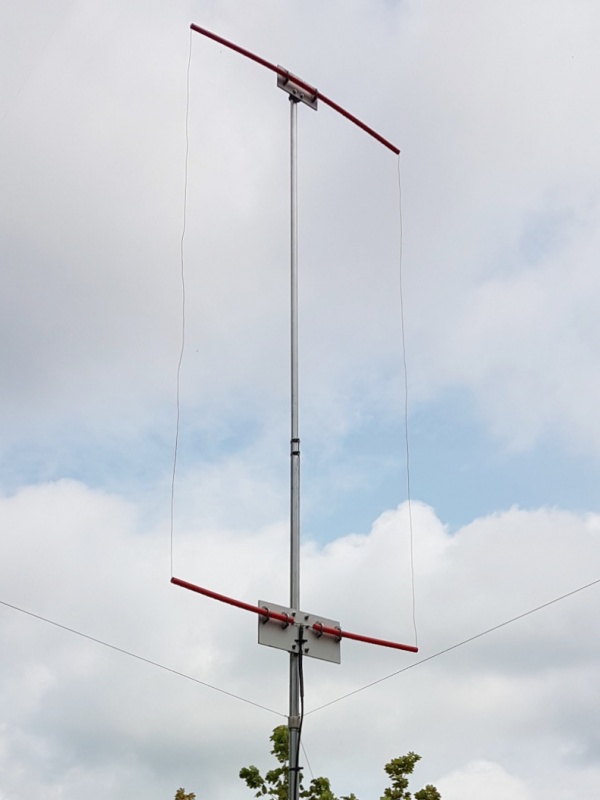

50MHz door frame loop in cottage yard. Mast 5.5 m Al-tube

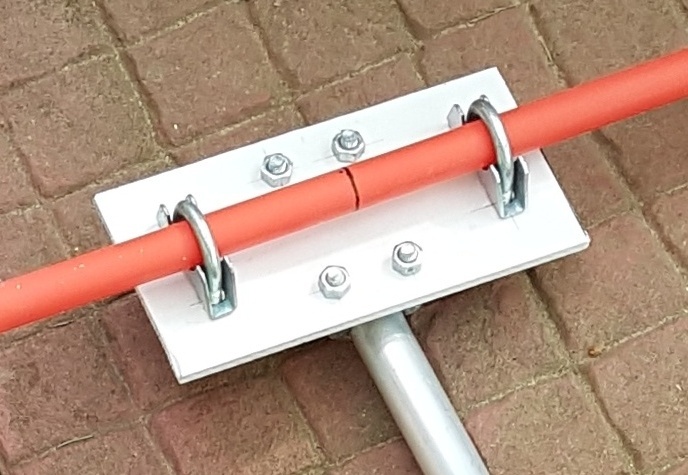

I used 20 mm plastic support tubes on top and bottom


The wire is 1.5mm enamel wire, total length 6.25m

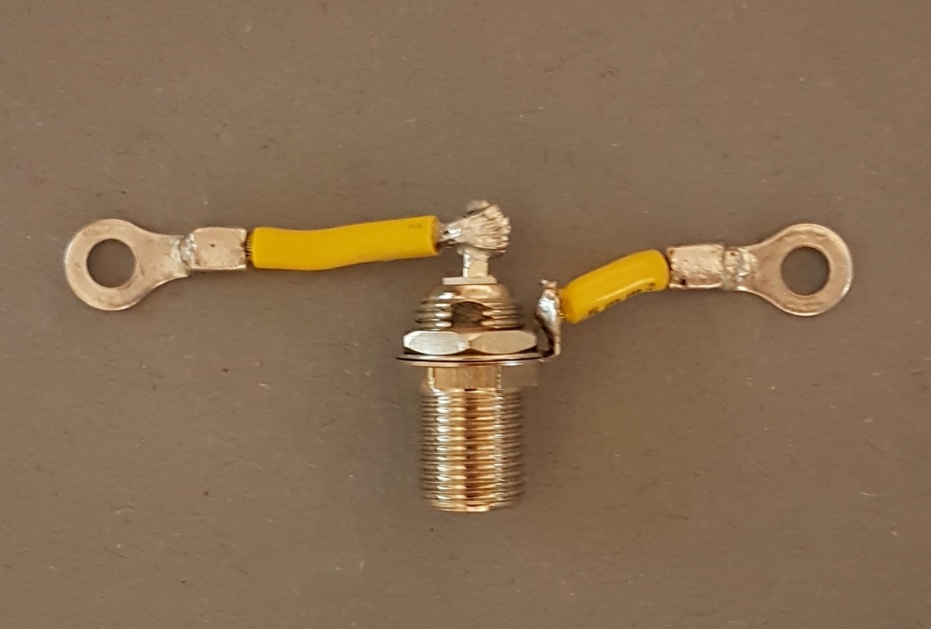

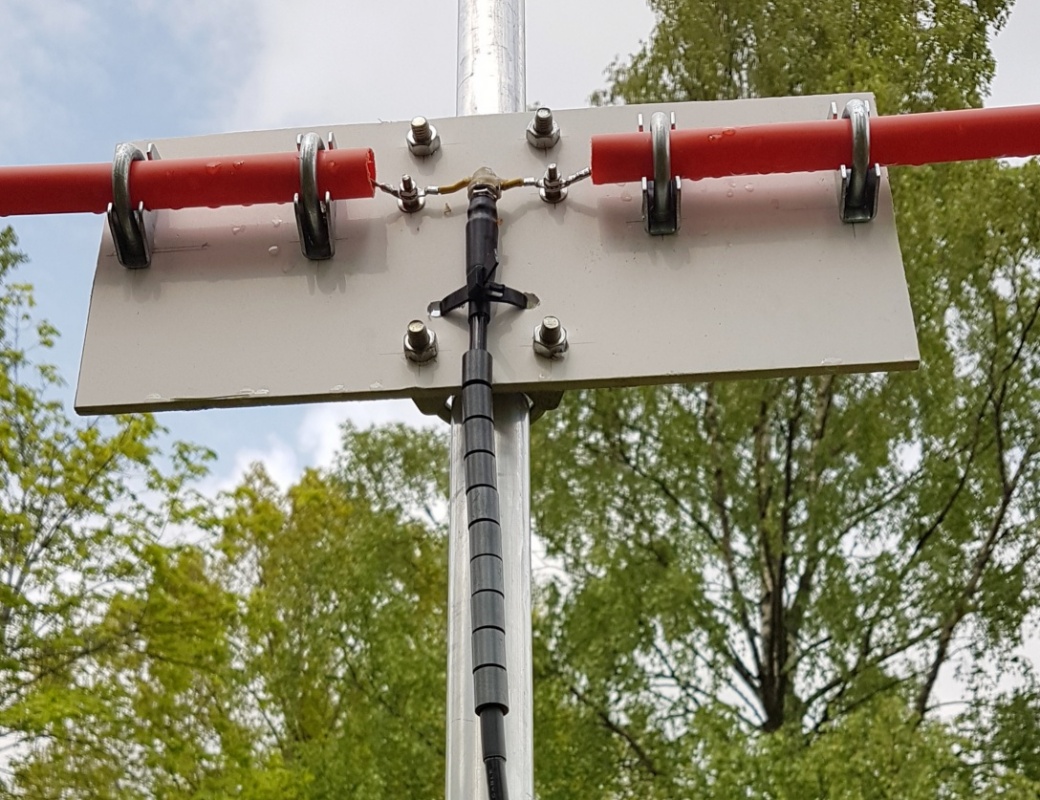

Wire connection using ring lugs in feeding point

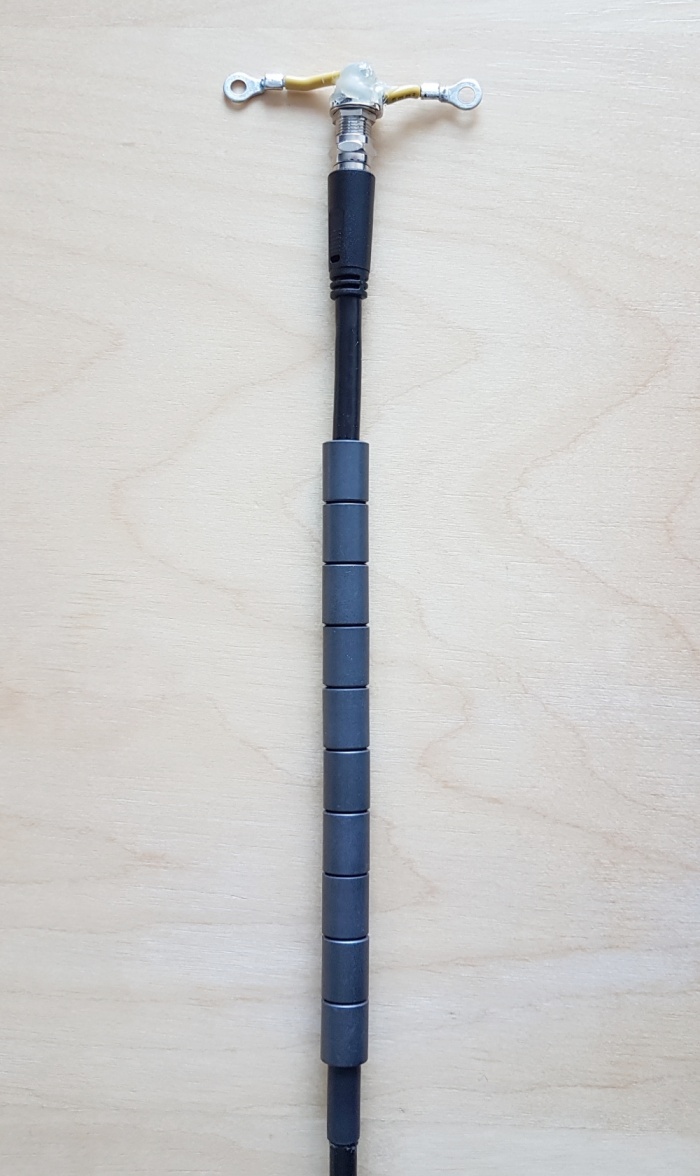

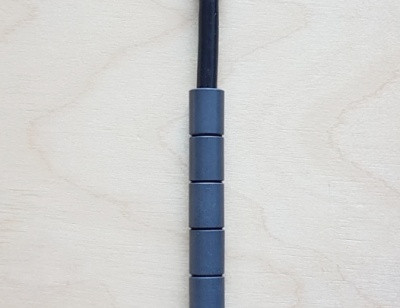

Choke balun 10 Wurth 74270034 ferrites on satellite RG6 coax


75 ohm satellite cable RG6 (lenght 8 x half wave = 19.80m)

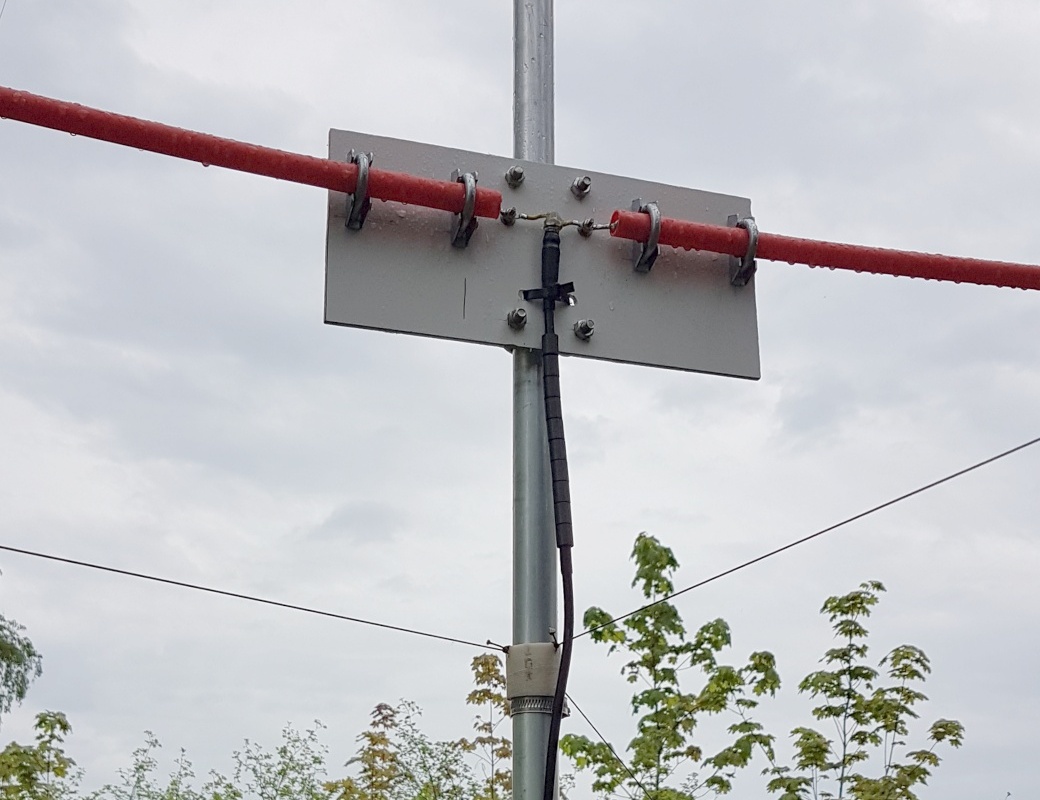

Feeding point detail with F-bulkhead connector

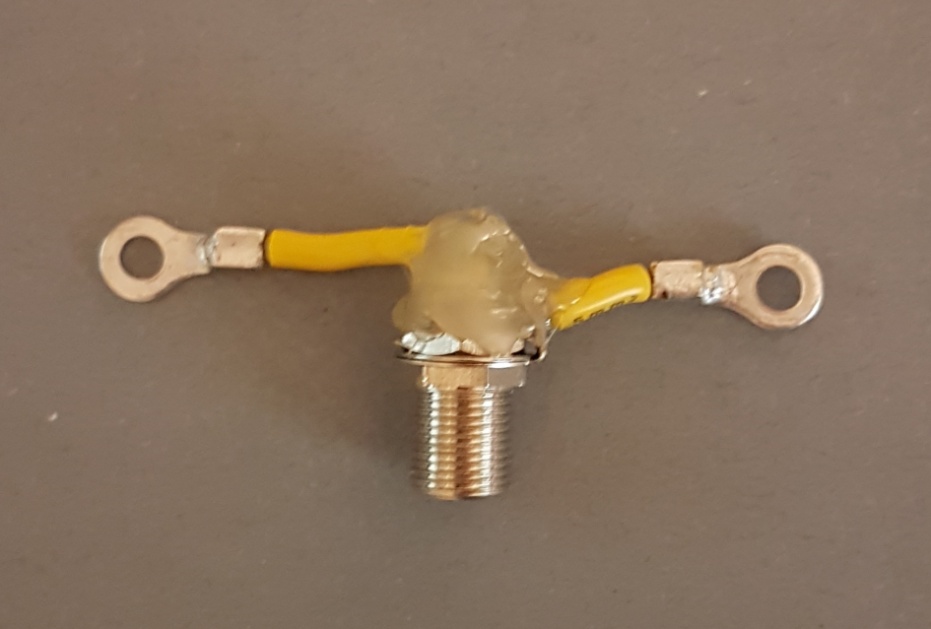

Bulkhead F-connector sealed with hot-setting adhesive

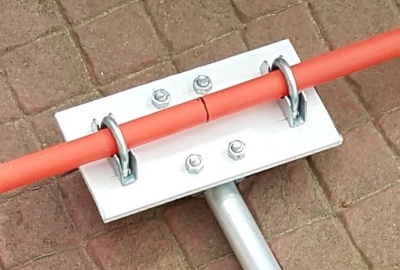

Top part detail

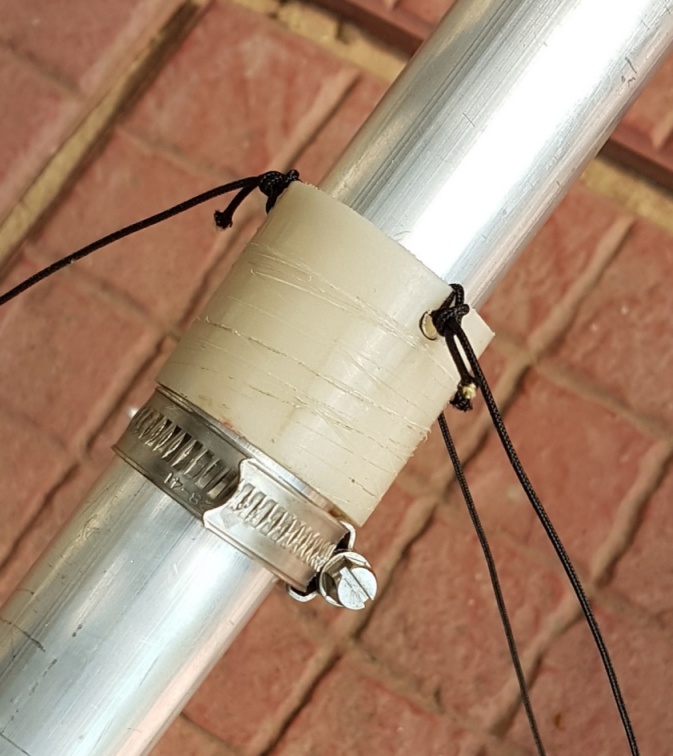

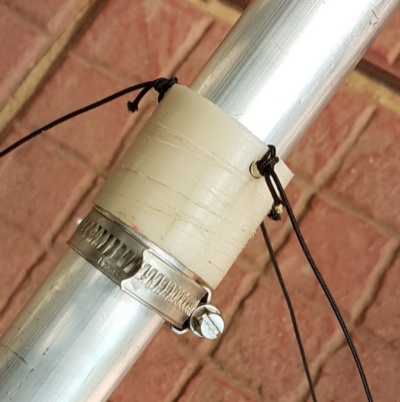

Simple bearing for 1mm Kevlar guy ropes

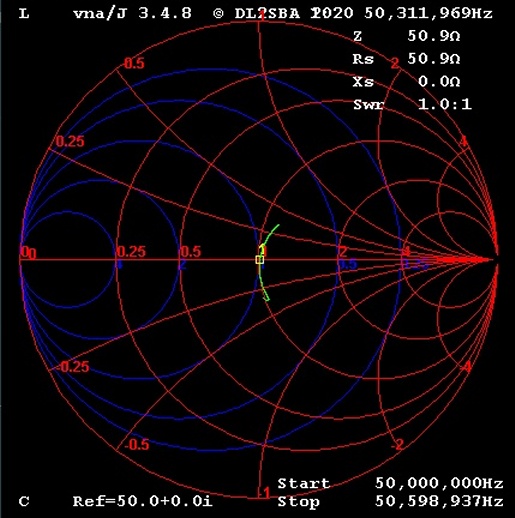

Matching in Smitt chart

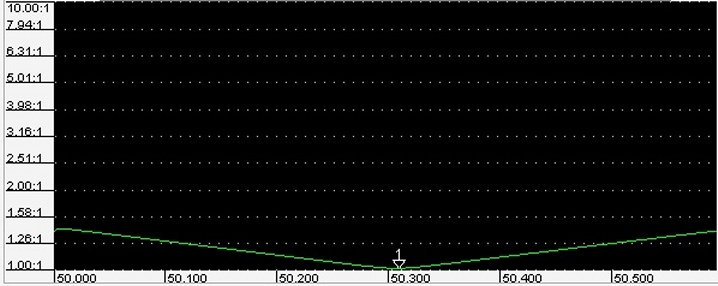

SWR below 1.5:1 from 50.000MHz to 5.600MHz

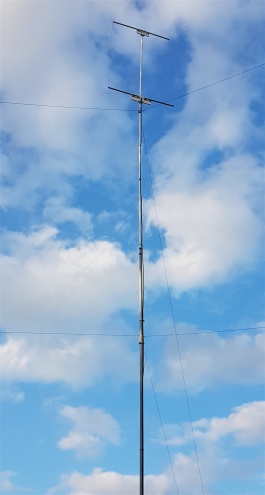

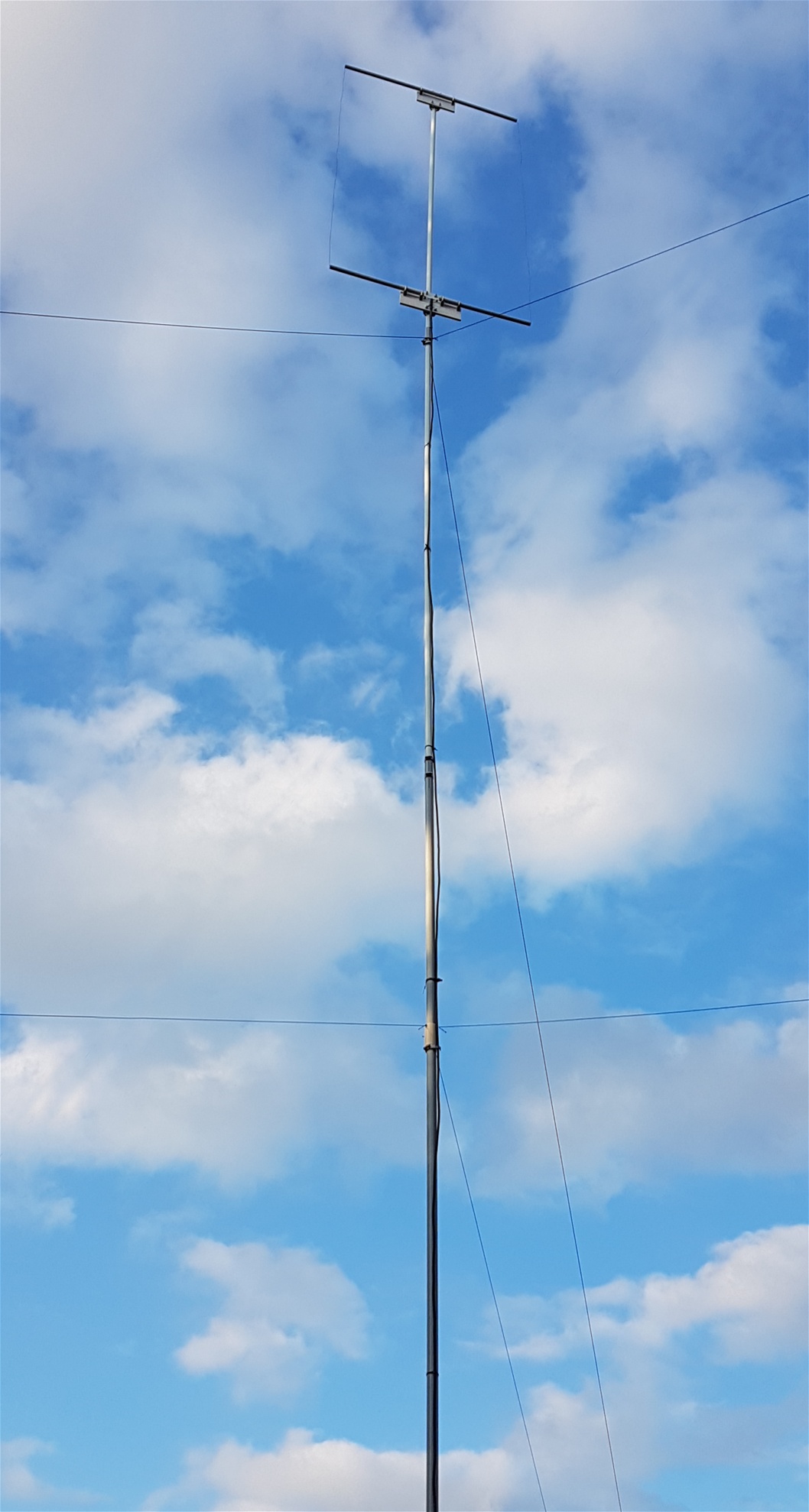

Updated installation, height 10 meters

See also 50MHz door frame loop simulation

Update 2023-06-12 OH7SV
