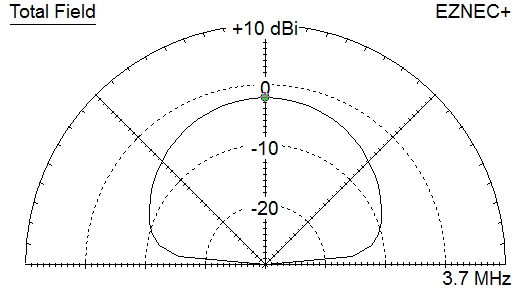

80m full wave horizontal loop gain versus height


  Height 2 meters
Max gain -2.5 dBi straight up. Very low gain "bush antenna".

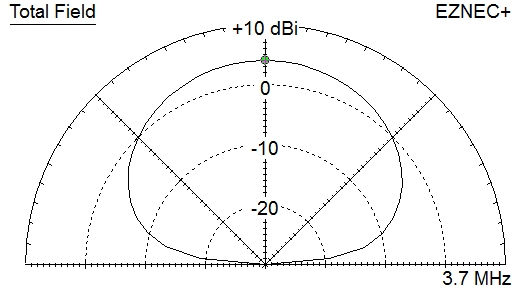

Height 5 meters
Max gain 3.56 dBi
straight up. Low gain NVIS antenna.



Height 10 meters
Max gain 7.1 dBi
straight up. Good NVIS antenna.

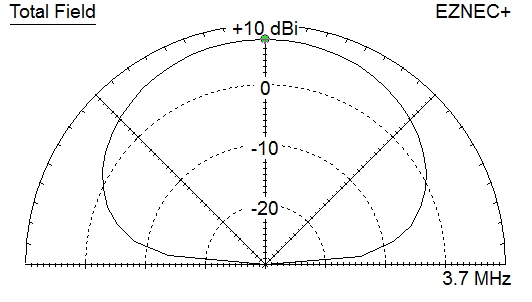

Height 15 meters
Max gain 7.5 dBi straight up. Good NVIS antenna.

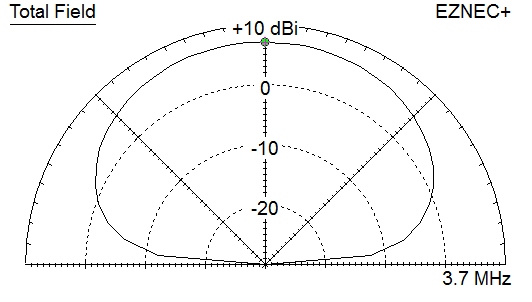

Height 20 meters
Max gain 7.1 dBi
straight up. Good NVIS antenna.



Height 25 meters
Max gain 6.0 dBi at 65 degrees. Good NVIS and fair medium range antenna.

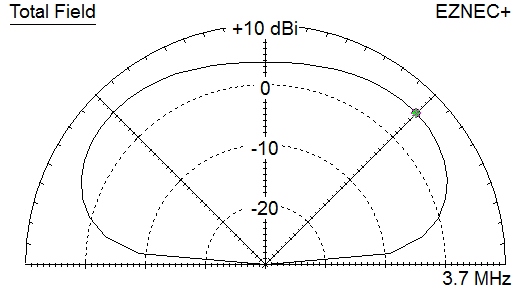

Height 30 meters
Max gain 6.6 dBi at 45 degrees. Fair NVIS and good medium range antenna.

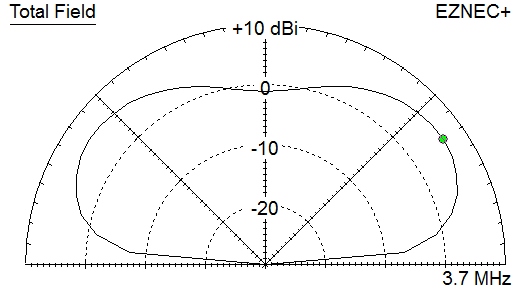

Height 35 meters
Max gain 6.2 dBi at 35 degrees. Poor NVIS, fair long range antenna.

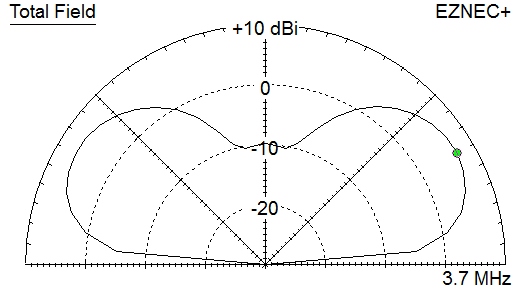

Height 40 meters
Max gain 6.9 dBi at 30 degrees. Very bad NVIS, good long range antenna.

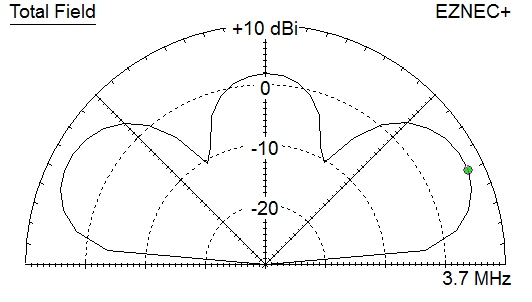

Height 45 meters
Max gain 7.2 dBi at 25 degrees.
Poor NVIS, good long range antenna.
