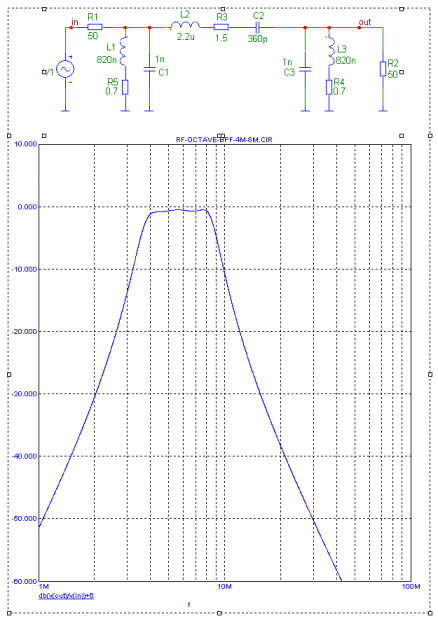

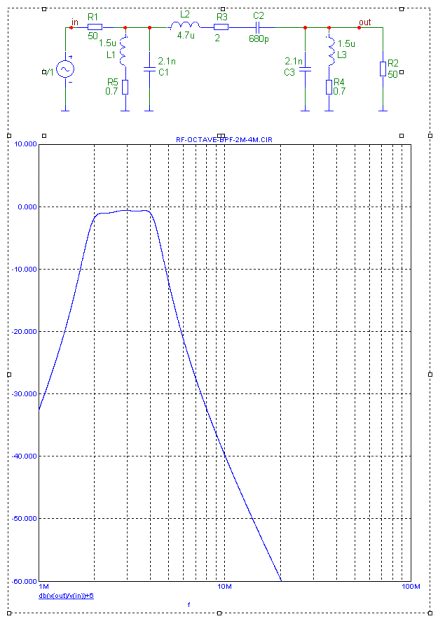

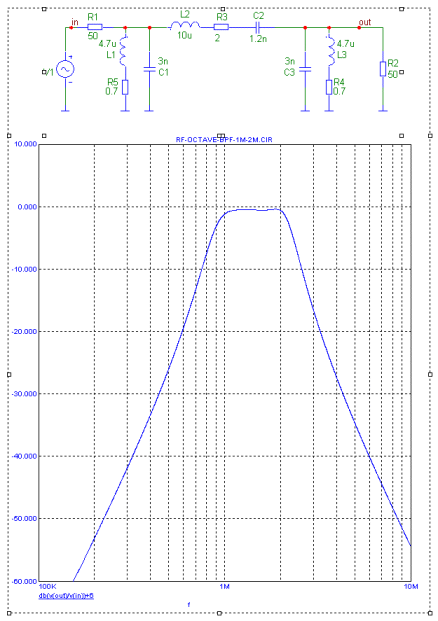

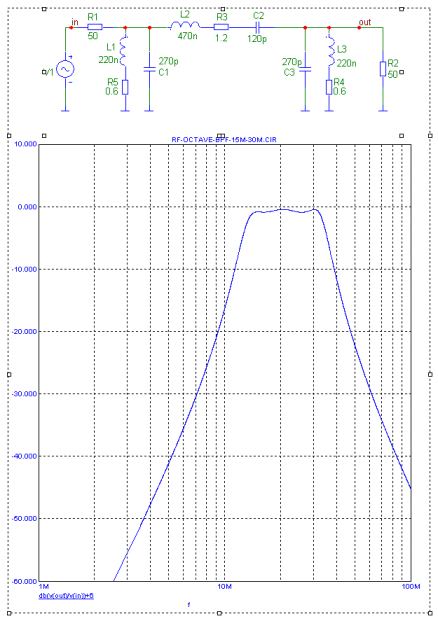

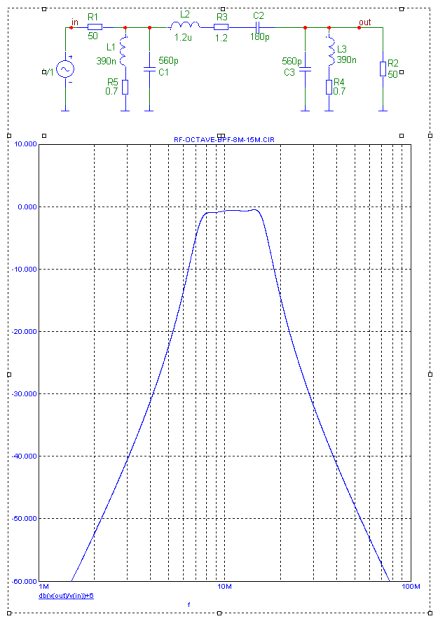

Octave band pass filter simulation 2004-09-14 OH7SV

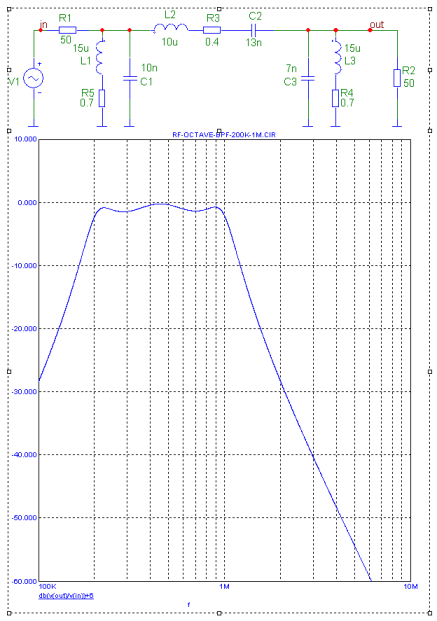

Note 1. The wider 200 kHz to 1 MHz filter is only for receive purpose
Note 2. The small resistors values simulates actual Q factors of the SMD inductors
