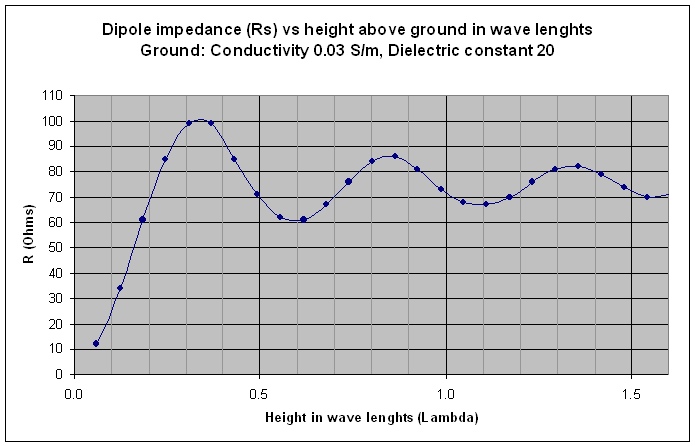

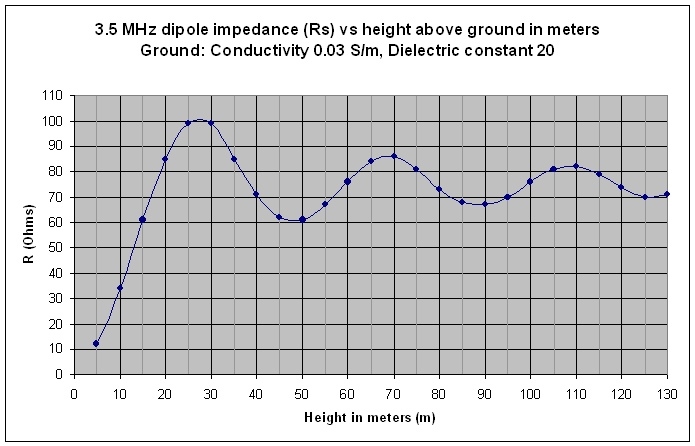

Half wave dipole real impedance (Rs) versus height above ground OH7SV 2012-12-03

The graphs are generated from
EZNEC antenna simulator data.
The impedance has been confirmed with real measurements up to 22 meters.
The correlation between simulation and reality
is very good.
The dipole is fed with a common mode choke (1:1 current balun)
.
