JUMA IC-705 Bluetooth Gateway LEDs

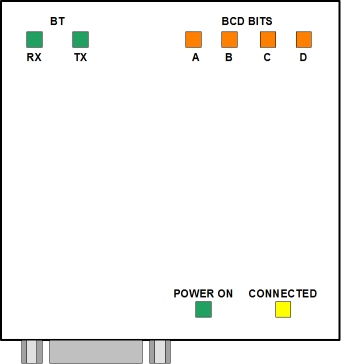

BT leds blink when Bluetooth data packet is received/sent. BT leds are blinking fast if no connection to IC-705.

BCD BITS leds are indicating the BCD band data output. The output is 1111 if frequency is not got from IC-705.

POWER ON led is lit when gateway is powered.
CONNECTED led is lit when Bluetooth is connected.
