Roof Edge Mount NVIS Mobile Whip Antenna Simulation

NVIS QSO is not so easy with a mobile whip antenna especially when the distance is short because the takeoff angle is almost directly upward 90 degrees.

The efficiency of a short whip is typically abt 1% which means a 20dB gain loss. But to get the best results it is clear that a NVIS whip
antenna should be installed to the front, rear or side of car roof but not in the middle to avoid deep null upward. See location simulation here.

This is a 1.5 meter long NVIS
whip antenna orientation comparison on 80 meter in a simple caravan model.

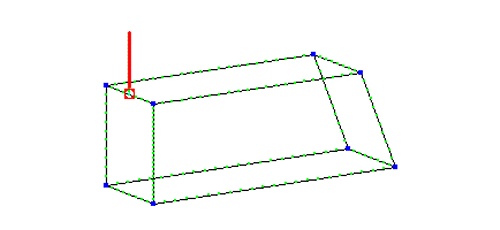

Vertically orientated whip antenna model

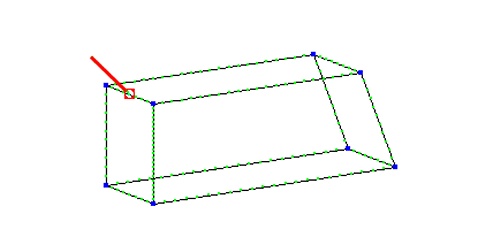

45 degrees tilted whip antenna
model

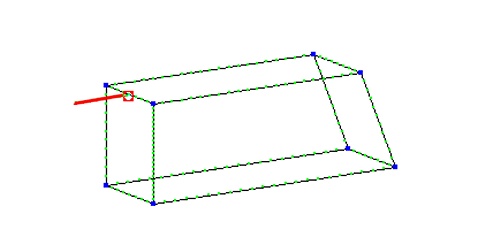

Horizontally
tilted whip antenna model

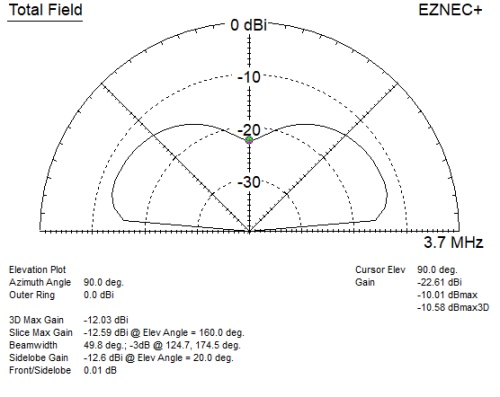

Vertically orientated whip antenna elevation plot in dBi scale

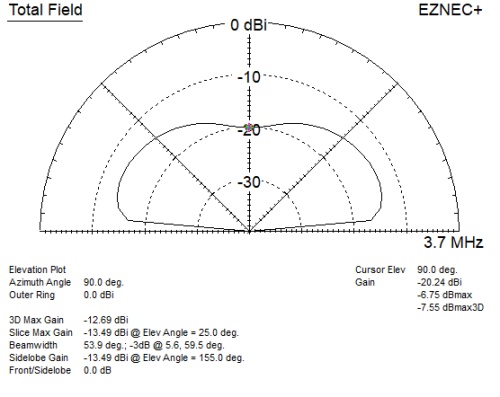

45 degrees tilted whip antenna elevation plot
in dBi scale

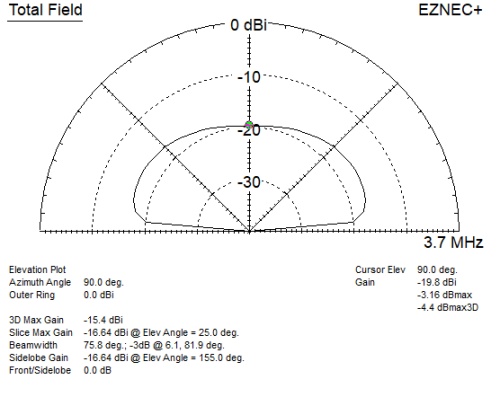

Horizontally tilted whip antenna elevation plot
in dBi scale


Verdict of an roof edge mount whip antenna orientation
NVIS car whip antenna should not be installed in the middle of car roof to avoid deep null upward.
Tilting 45 degrees an edge mount whip seems to best compromise
for NVIS and medium range QSOs.
Horizontally tilted whip seems to worsen the overall performmance.

Update 2023-02-03 OH7SV
