JUMA RSEL4 Remote Selector for Remoterig

This is a Remoterig RRC 1258 compatible selector which provides 12V out to one of the four outputs. The output can be selected locally by the rotary switch and when set to REMOTE position it can be controlled via the Remoterig I/O web user interface. It is intended eg for antenna relay control like to replace Ameritron antenna control box.

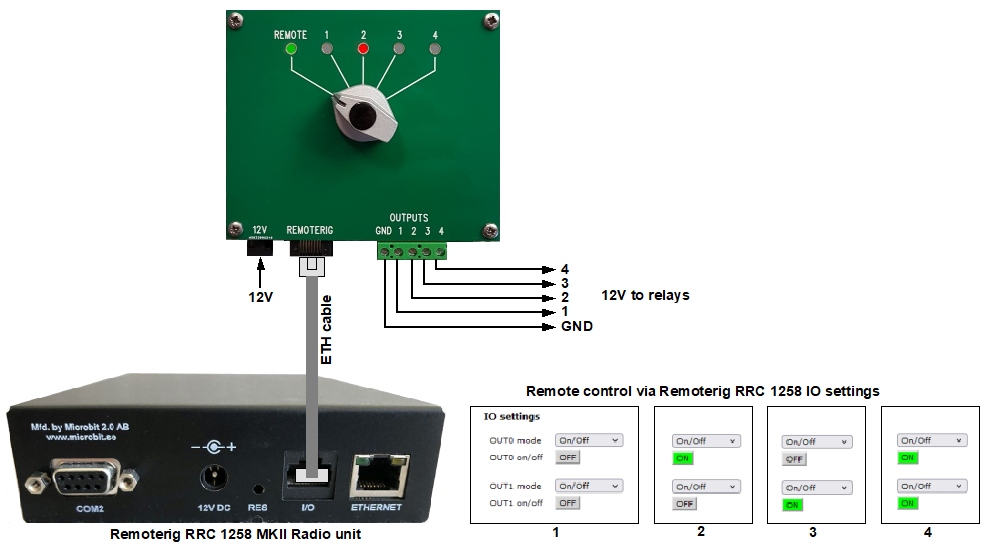

Setup in radio station

- The DC input can be 12V-14V with a standard DC plug.

- A standard 8-pin Ethernet cable can be used from Remoterig to selector.
- Max
current output is 0.5A. The outputs have relay coil flyback clamping diodes.
- Remoterig Radio unit IO settings must be set to On/Off
mode for OUT0 and OUT1 which after the selection can be controlled by the two buttons in the web UI.

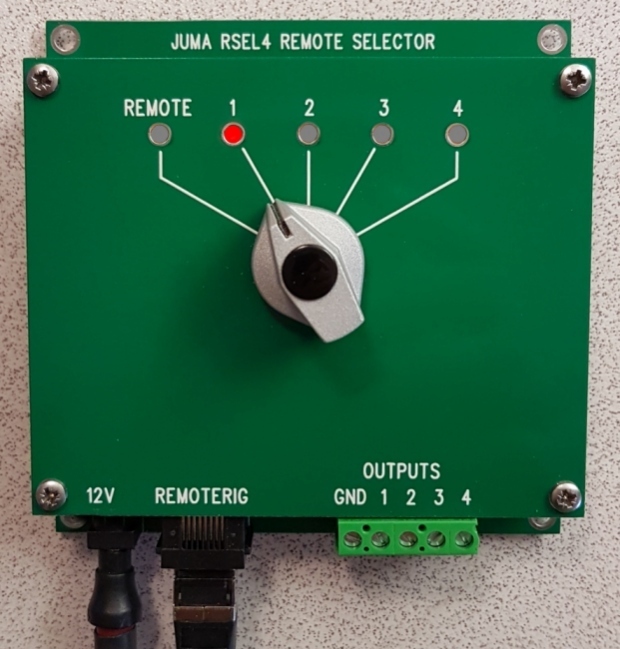

Locally selected #1 output

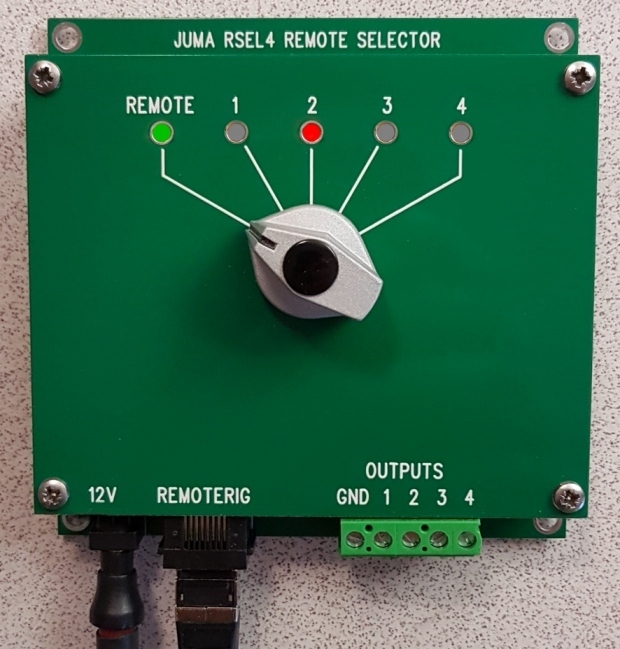

   Remotely selected #2 output

Downloads
Schematics
BOM
Main PCB layout
Front PCB layout


Note. Few proto PCBs available on request.


Update 2022-10-30 OH7SV
