Simple Foot Switch

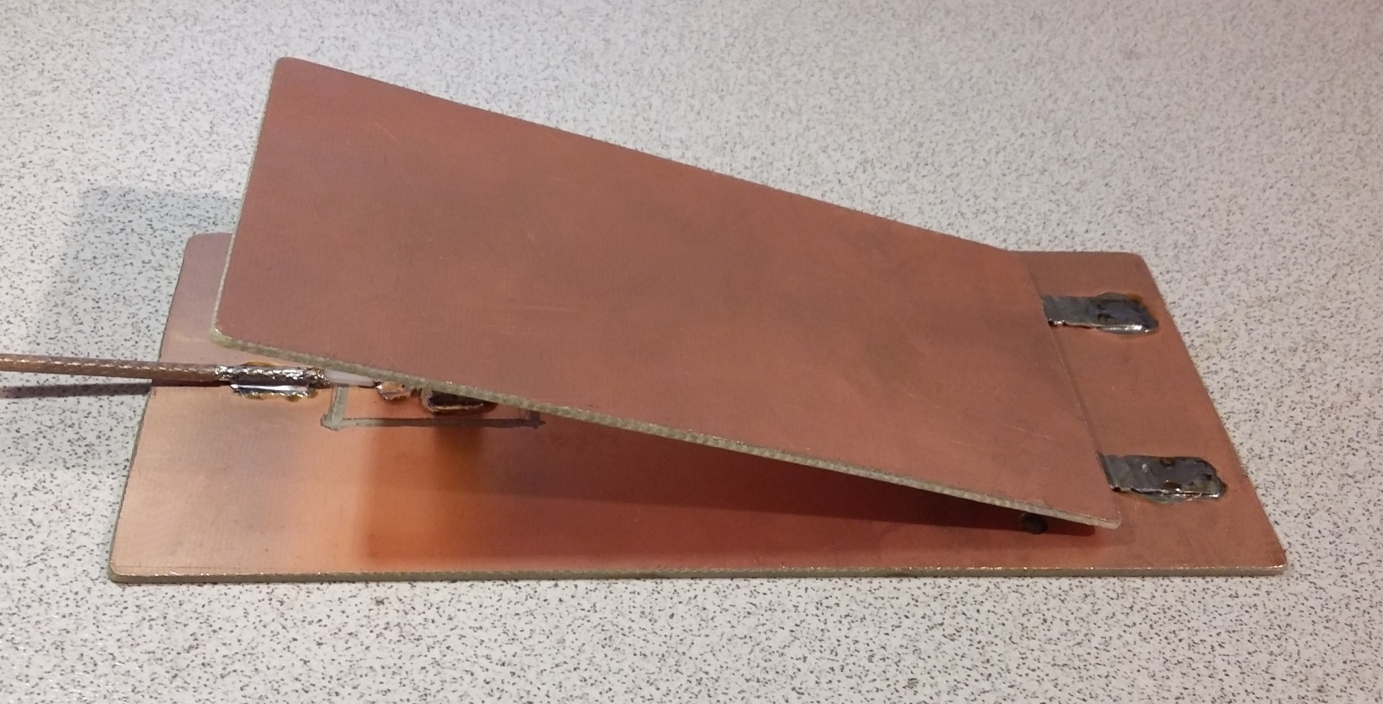

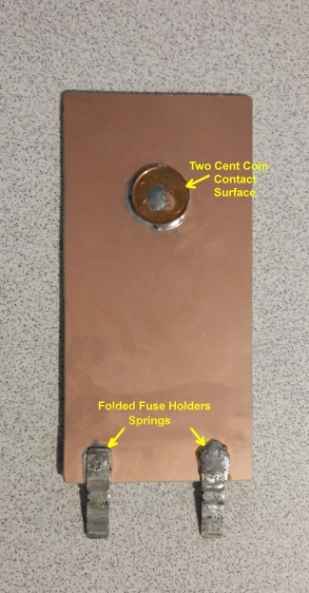

Simple Foot Switch made of 1.6mm PCB material (Click for large picture)

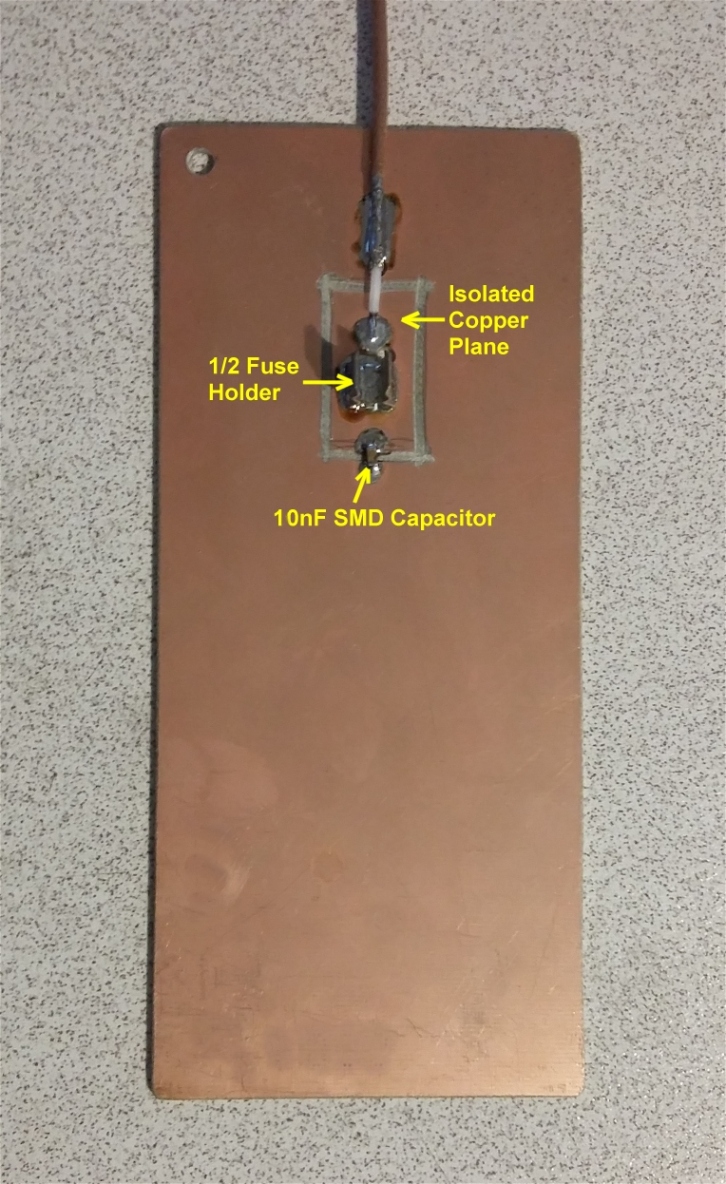

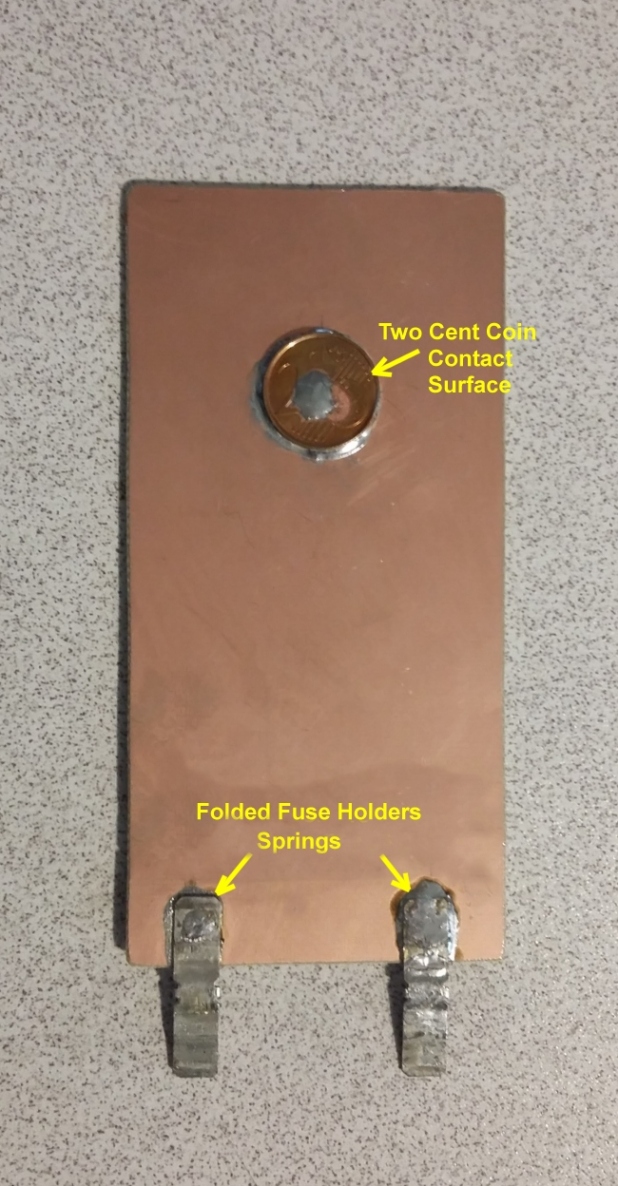

                                 Bottom PCB (70mm x 150mm)                                                Top PCB (60mm x 120mm)

Edit 2020-08-28 OH7SV

I replaced the 1/2 fuse holder counterpart
with a tactile switch to get a better feedback to foot.
Additionally I folded the the 'springs' down towards to the switch to avoid a play. Now it feels good.



Tactile switch


Foot switch with a
tactile switch
