Test LPF Filters

These LPF filters can be used for test purpose or integrate into your equipment. The filters can easily handle 30W of RF power. The filters can be configured for desired frequency by following the measured frequency response plot and the component values in the schematics.

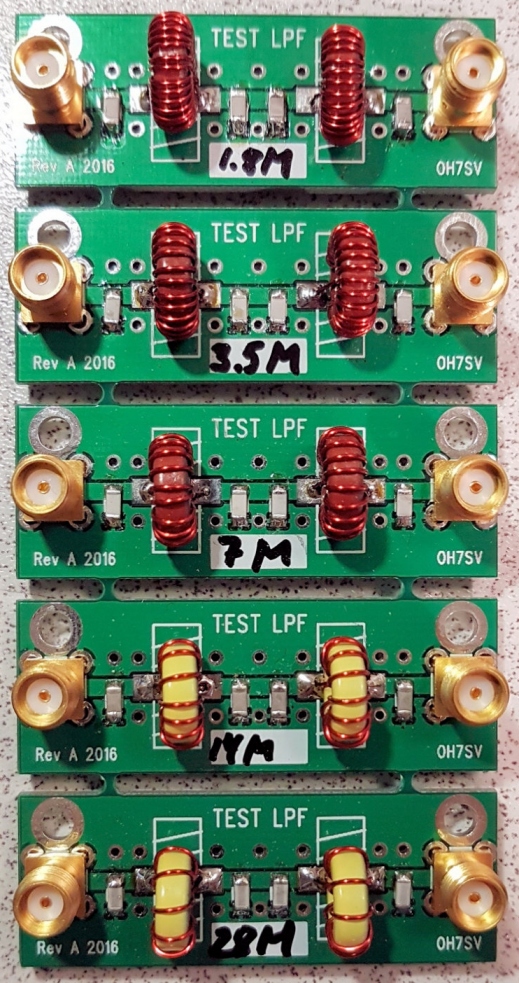

5 LPF filters in PCB panel (click to enlarge)

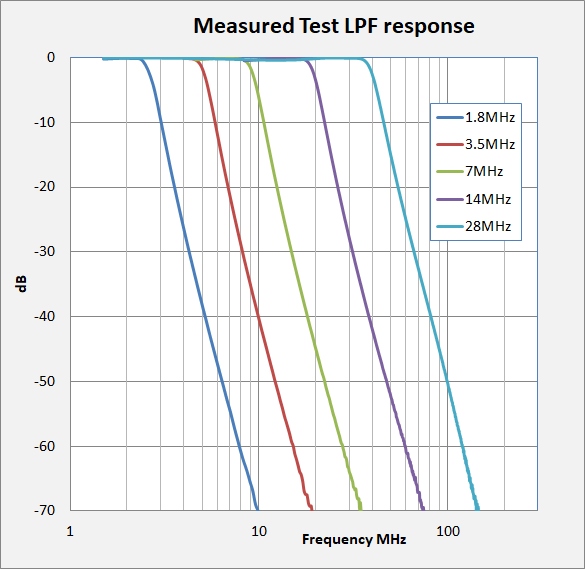

Measured frequency response of the 5 LPF filters

Downloads
Schematics with component information (PDF)
Layout picture (PDF)
PCB Gerber files (ZIP)
