Ultrasonic Direction Finder JUMA UDF1

I designed this Ultrasonic Direction Finder to find arcing insulators in high voltage power lines. An arcing insulator can generate very strong wide band RF noise. Typically you can recognize insulator arcing noise by using noise blanker (NB) which may reduce the interference as opposed to other noises eg switching power supply noise which can't be reduced with noise blanker. Arcing insulators generate ultrasonic sound. With this UDF1 you can find the pole or even the particular insulator which is arcing.

Power grid companies are happy to know an arcing insulator to make preventative repair before the insulator will fail completely. This way you can get rid of this bad arcing RF noise.

The receiver is using a direct conversion principle to convert ultrasonic 16kHz-50kHz sound down to audio frequency range. Additionally this finder can be switched to direct audio frequency sound receiver by stopping the local oscillator with a switch on the PCB.

Click the photos to enlarge.

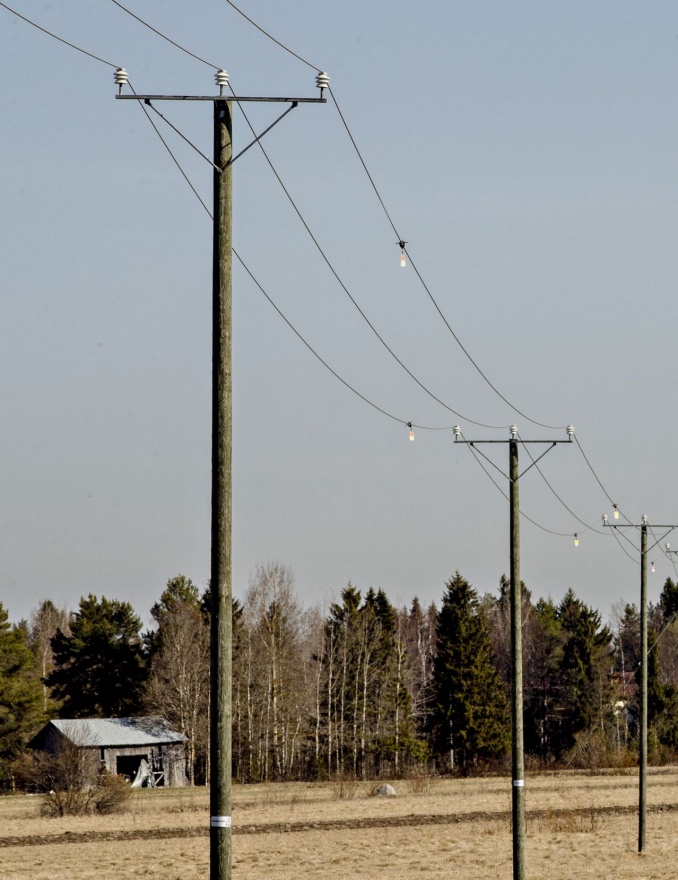

High voltage power line

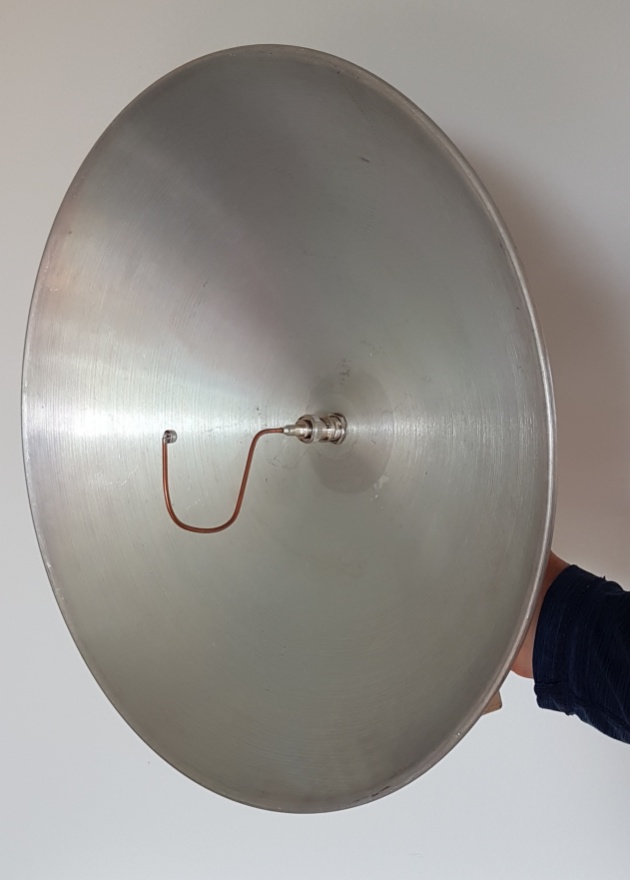

34cm wok pan lid parabolic reflector

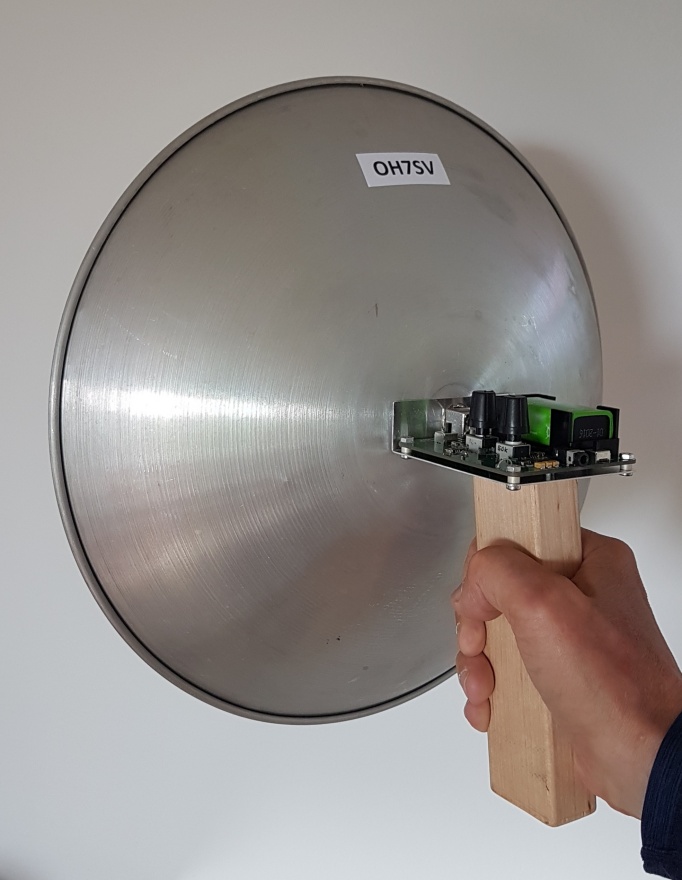

Rear view with the wooden handle

Pekka OH1TV testing UDF1

I am using a 30 cm wok pan lid which has not a precise parabolic shape. I used sunlight and a piece of paper to find a best focal point. You can use a alike lid or a real parabolic dish. The diameter can be from 30 cm up to any practical size. I tested several electret microphones in ultrasonic frequency range and I found that the smaller the better. WM-62BT microphone was the best with a diameter of 6.0mm and thickness 2.7mm.

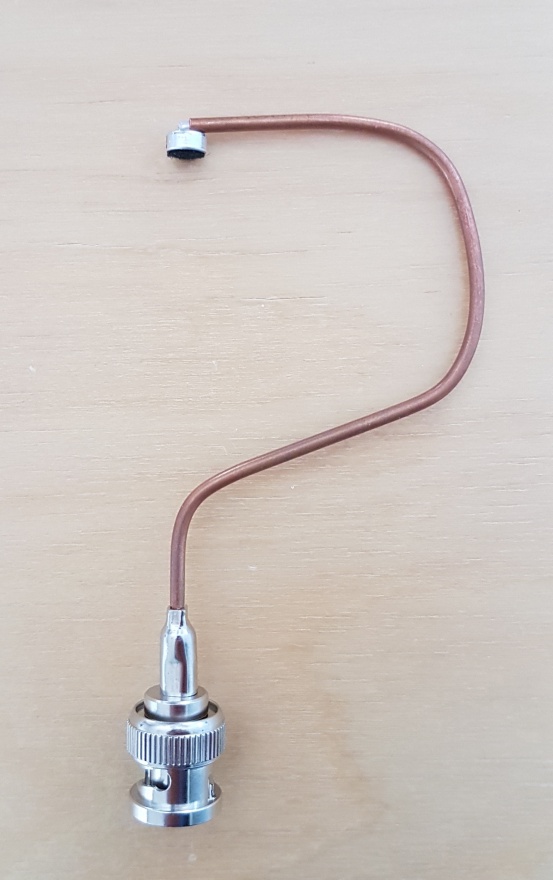

Electret microphone WM-62BT
soldered to a semi rigid coax.

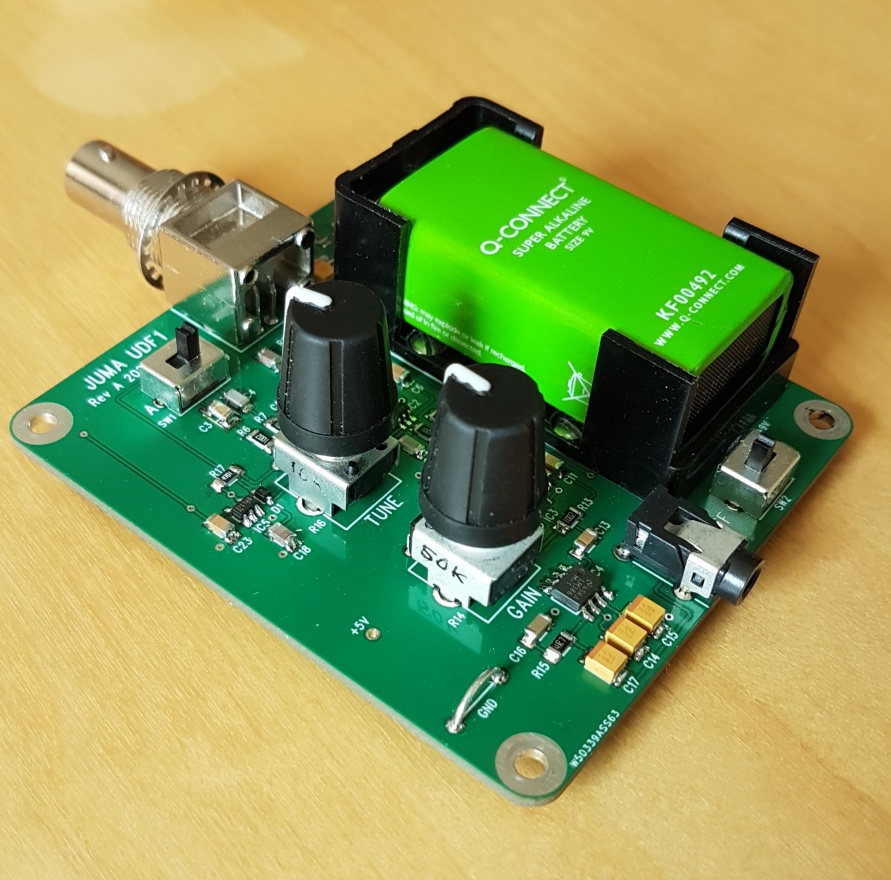

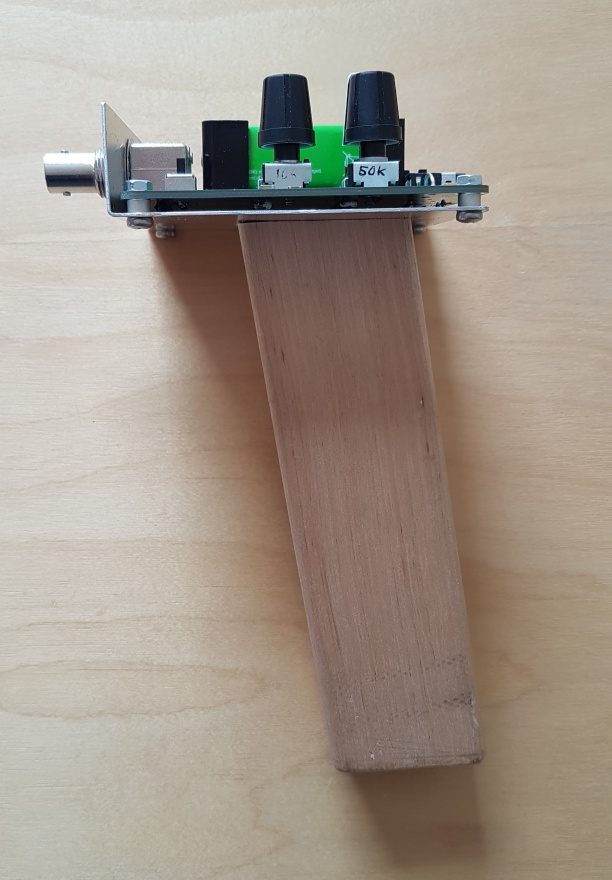

PCB and handle left view.
Handle angle is 10 degrees.

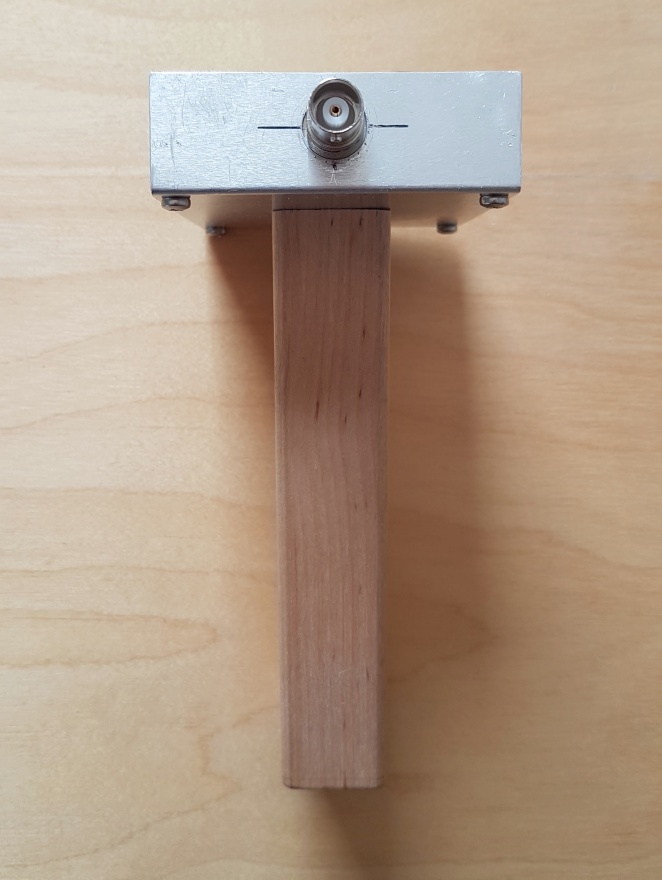

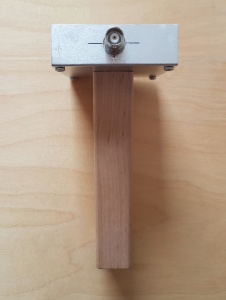

Front view with BNC bulkhead
connector for the microphone.

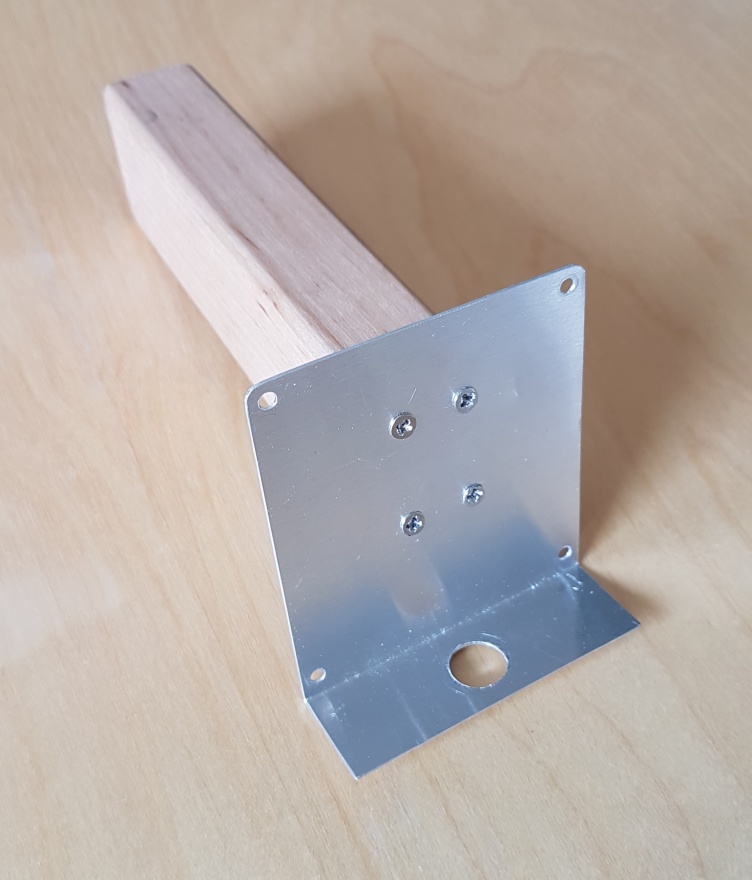

The wooden handle is screwed
to a 1mm
aluminum chassis.

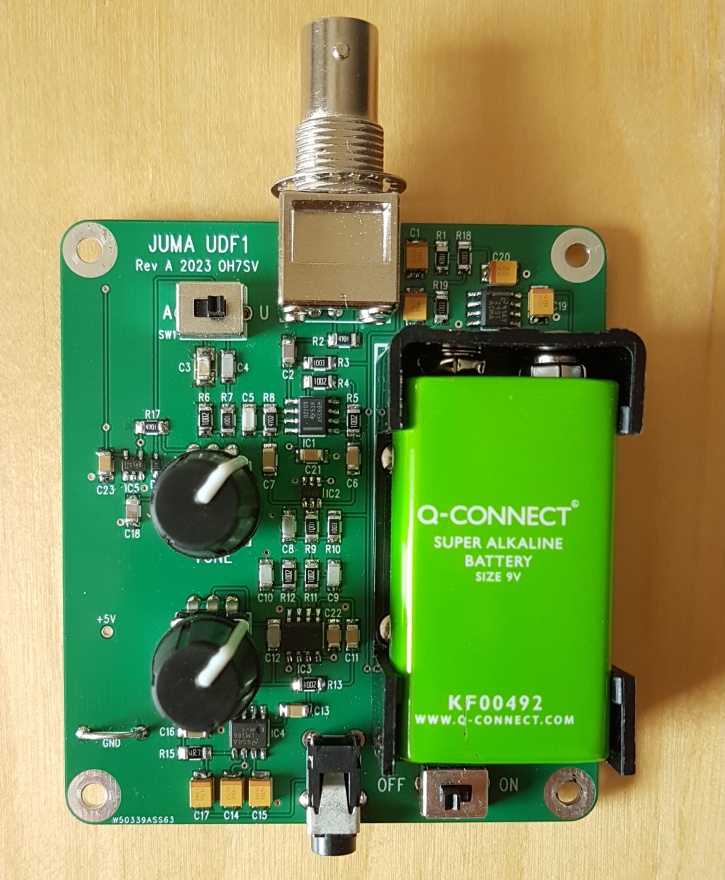

Power switch is right down, audio/ultrasonic selector switch is left up.
Tune and gain potentiometers. Headphone connector is a 3.5mm jack.

I also tested a real 12 inch parabolic reflector from Edmund Optics. It provides much better focus and thus better directivity. On the other hand the wok lid has a workable performance.

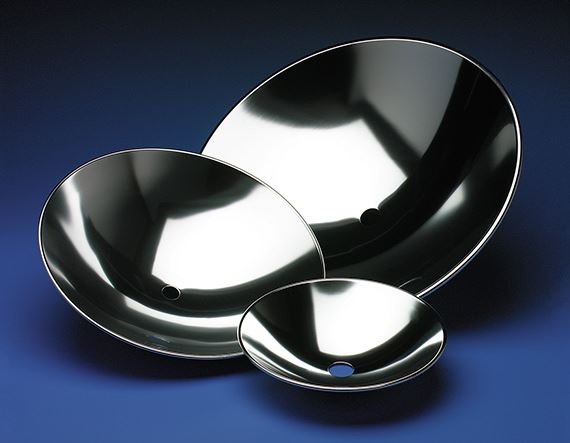

Parabolic reflectors from Edmund Optics

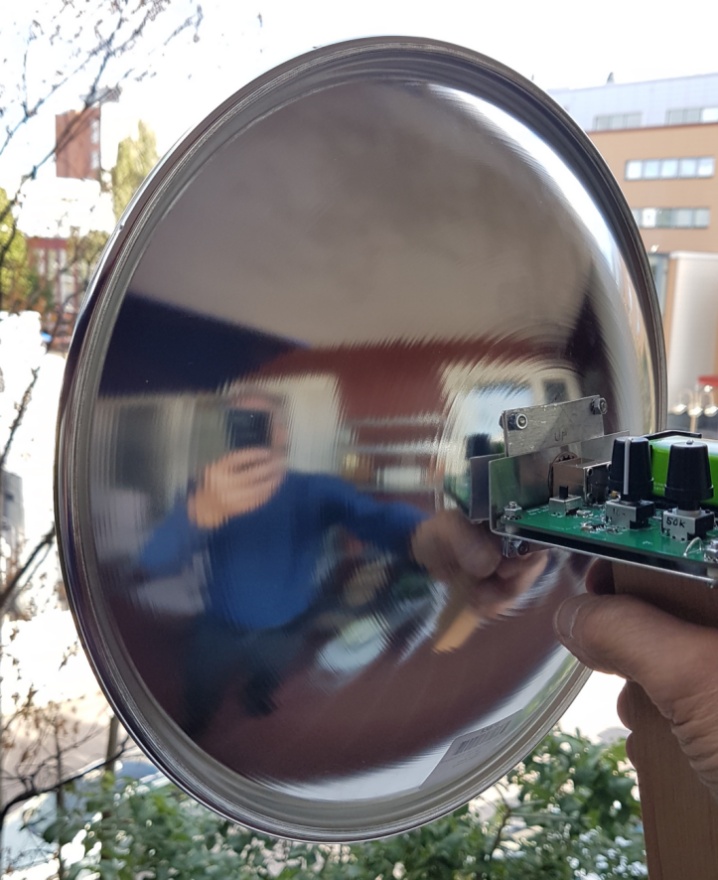

Edmund Optics Parabolic in use

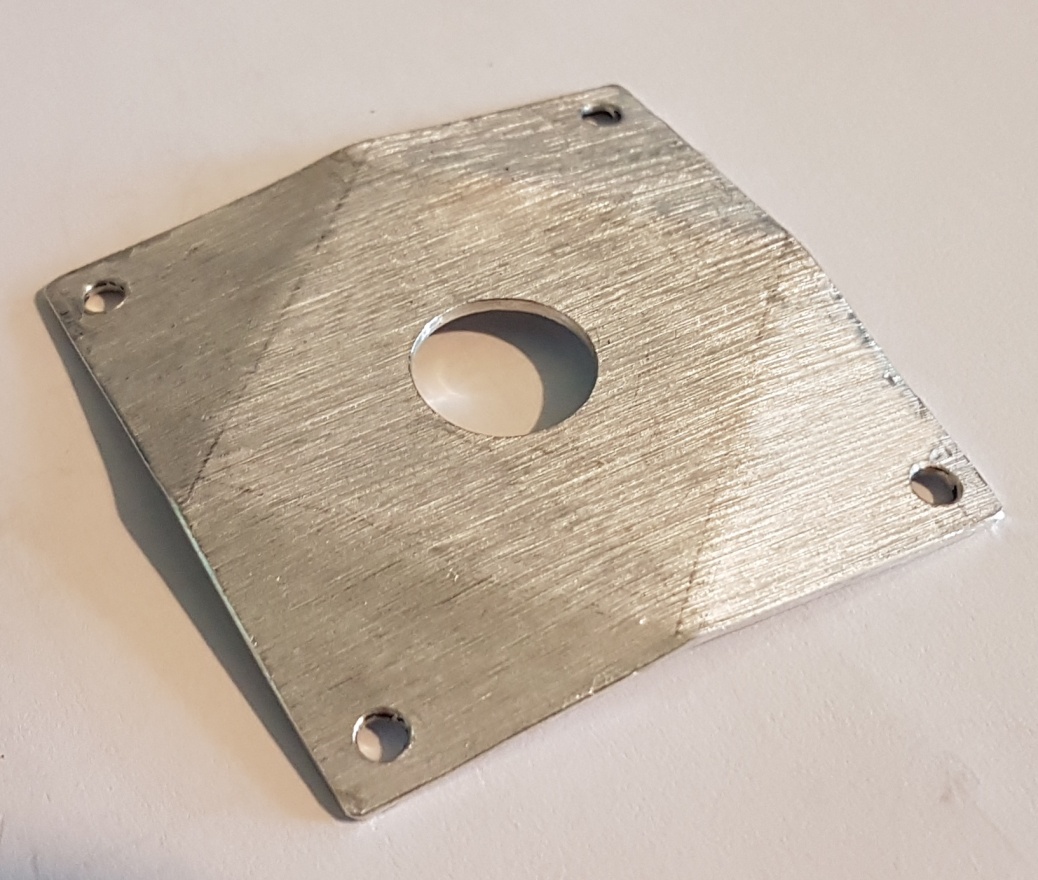

50 x 50mm Al piece is needed to reduce the 19 mm hole

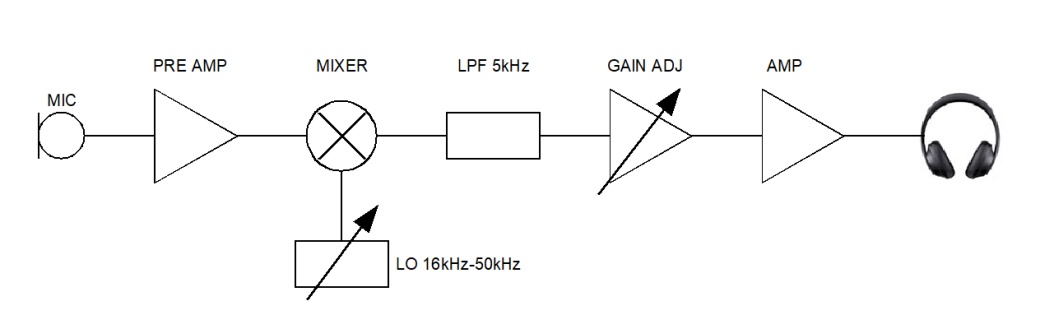

JUMA UDF1 block diagram

Downloads

- Schematics
- Layout
- BOM
- Gerber files

Update 2023-07-21 OH7SV
