WSJT-X Clublog Gateway real-time uploader

This Clublog Gateway is real-time WSJT-X QSO uploader. It is a Windows application. The Gateway uploads each WSJT-X QSO to Clublog in real-time when you click OK to confirm a WSJT-X QSO.


Gateway Monitor
Clublog response = [status code] MESSAGE

Fill your Clublog credentials. Application password must be created in your Clublog web account in the Settings - App Password link. Note. The Application password is not the same as your Clublog web account password!

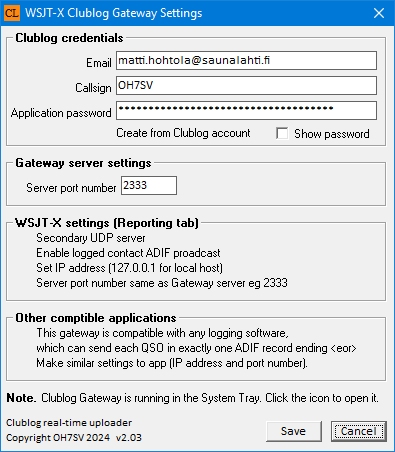

Gateway settings

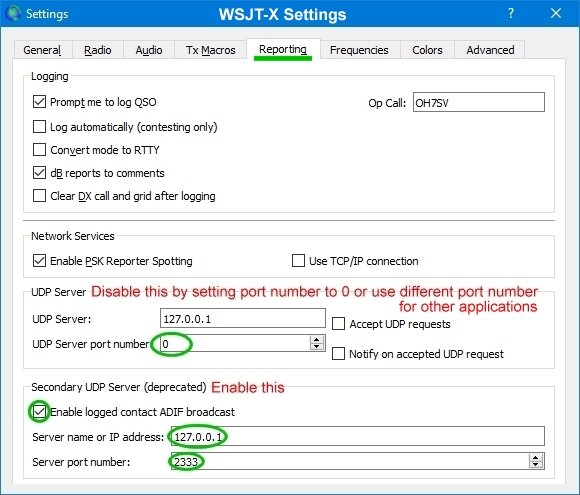

WSJT-X settings

WSJT-X Clublog Gateway runs in the Windows system tray and thus it takes very little room on your desktop. You can click "Hide to tray" and click the tray icon to show the Gateway.


Note. Windows Firewall may ask access rights, answer "Allow".

Tip1. Using this real-time uploader you can activate Cloblog Live-stream in your Cloblog account, if you want to publish it.


Tip2.
You can start
uploader automatically during PC start-up by copying the shortcut to Windows startup folder. Write "shell:startup" into File Explorer to find the startup folder.

Tip3. This gateway works also well in a LAN PC which is connected to internet by setting the relevant IP number and port number to each PC with WSTJ-X app. This feature is handy for a FT8/FT4 pedition team. In that case a wired LAN is preferred to avoid possible UDP packet losses compared to WLAN connection.

Feedback. I would like to hear your experience of this Clublog real-time uploader. You can find my email address in the Settings screen shot.

Download the latest version WSJT-X_ClublogGatewaySetup-v2.03.zip


If you find this real-time QSO uploader useful, I would appreciate if you want to make a donation to compensate my work.



Update 2024-03-14 OH7SV
