Simple Waterproof Coaxial Cable End for Antenna

I use
heatshrink tubes with glue to make a waterproof coax end. This is an example of the principle.

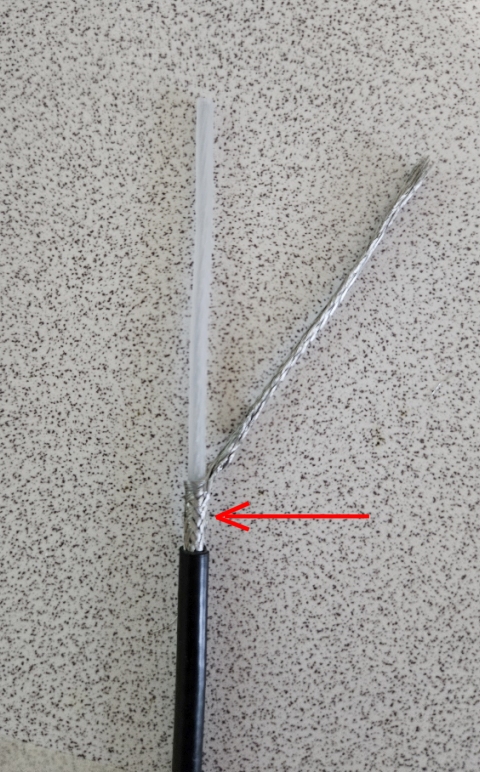

Peel the coax cable. Leave original shield as shown, the longer the better.

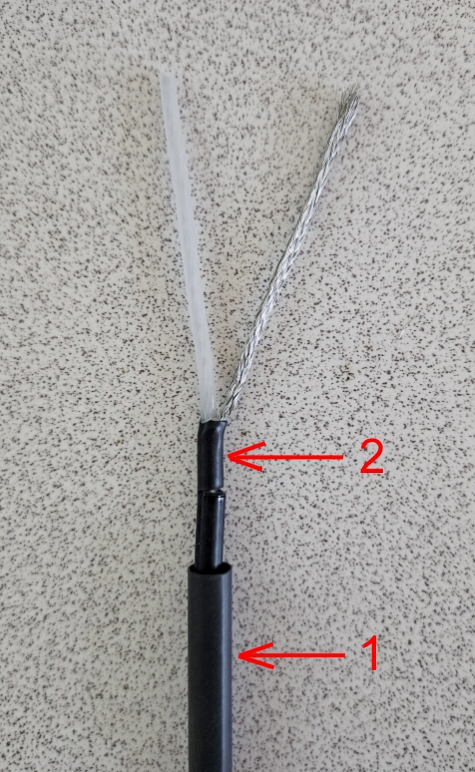

      Insert a bigger clue heatshrink 1. Then insert a smaller heatshrink 2 and heat it until you can see the glue coming in sight.

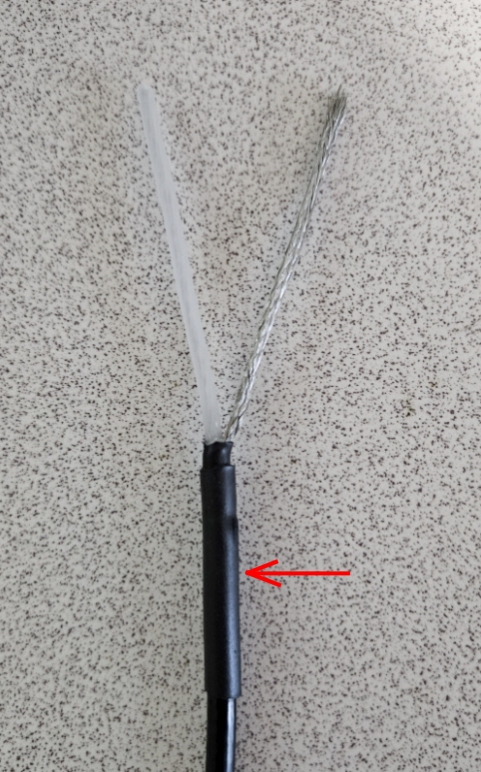

Slide the bigger heatshrink and heat it until you can see the glue.

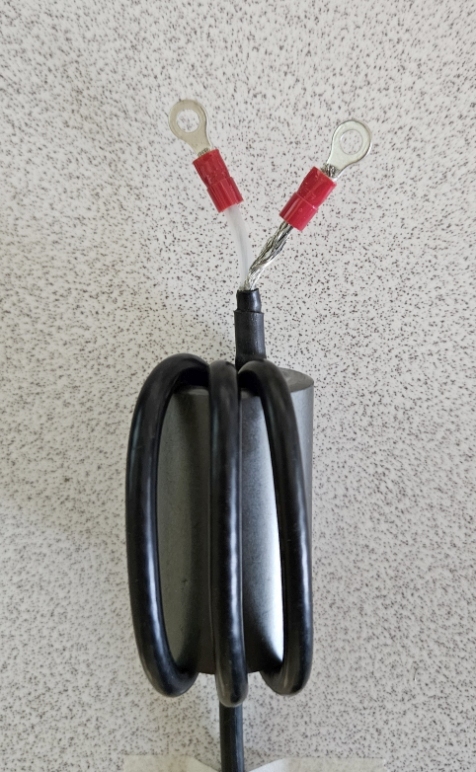

     Wind a choke balun (in this example 4 turns on Fair-Rite 2631103002)
and add scrimp lugs for antenna connection.


Update 2024-10-12 OH7SV
