Wilkinson splitter for HF RX IMD measurements OH7SV 2004-08-20

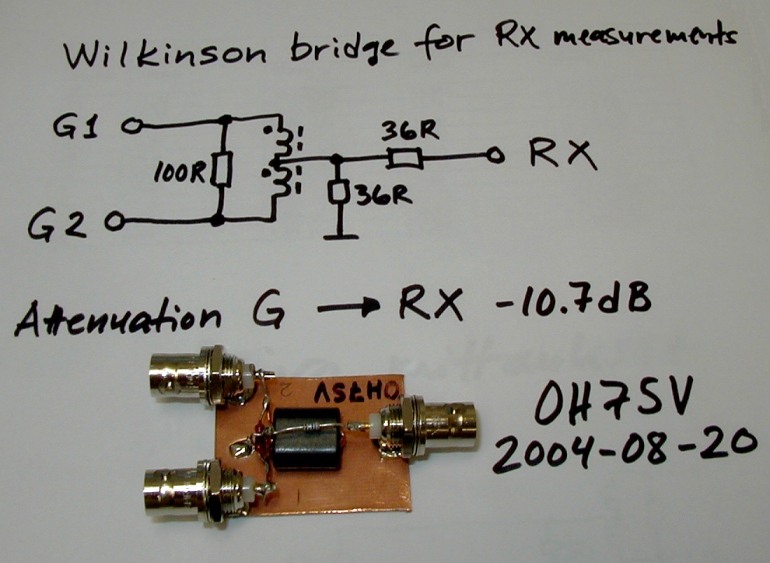

The schematics and the construction on FR4 ground plane

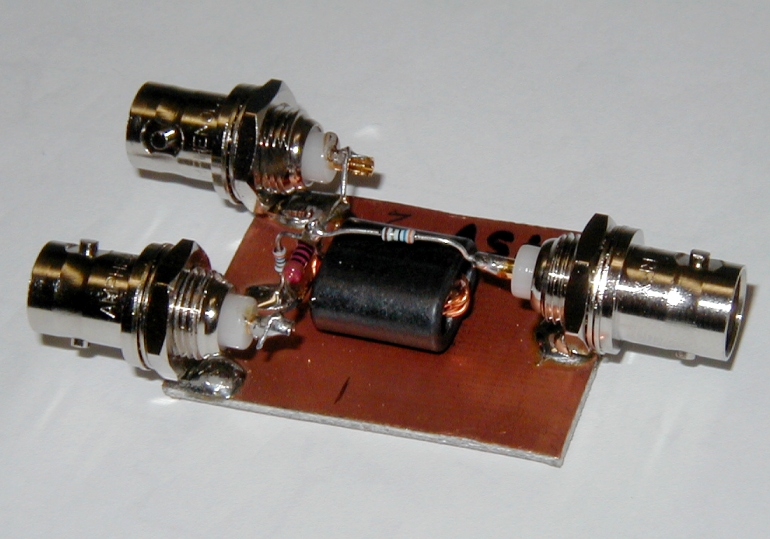

The ferrite core is Amidon BN-43-202. Winding 2 x 2 bifilar turns of 0.5 cu wire

This splitter is suitable for IMD measurements from 1 MHz up to 100 MHz. See the detailed data in this Excel file
