Active Ferrite Rod Antenna for HF, 08.10.2005 OH7SV

Click the pictures to enlarge

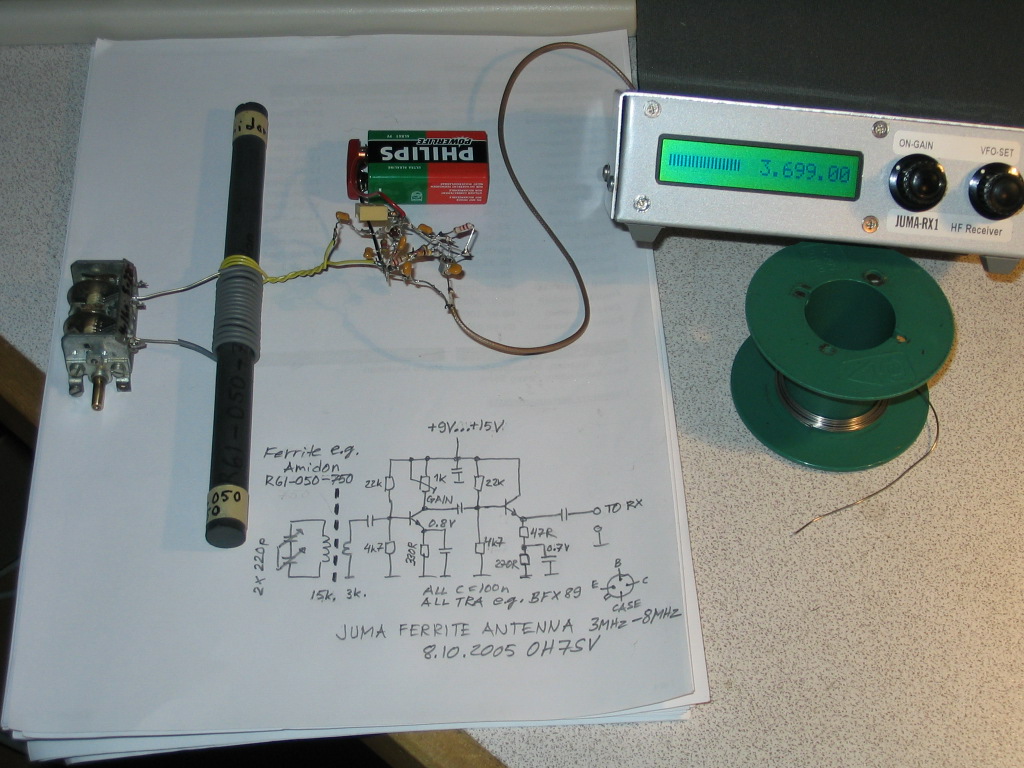

Ferrite rod antenna prototype in action

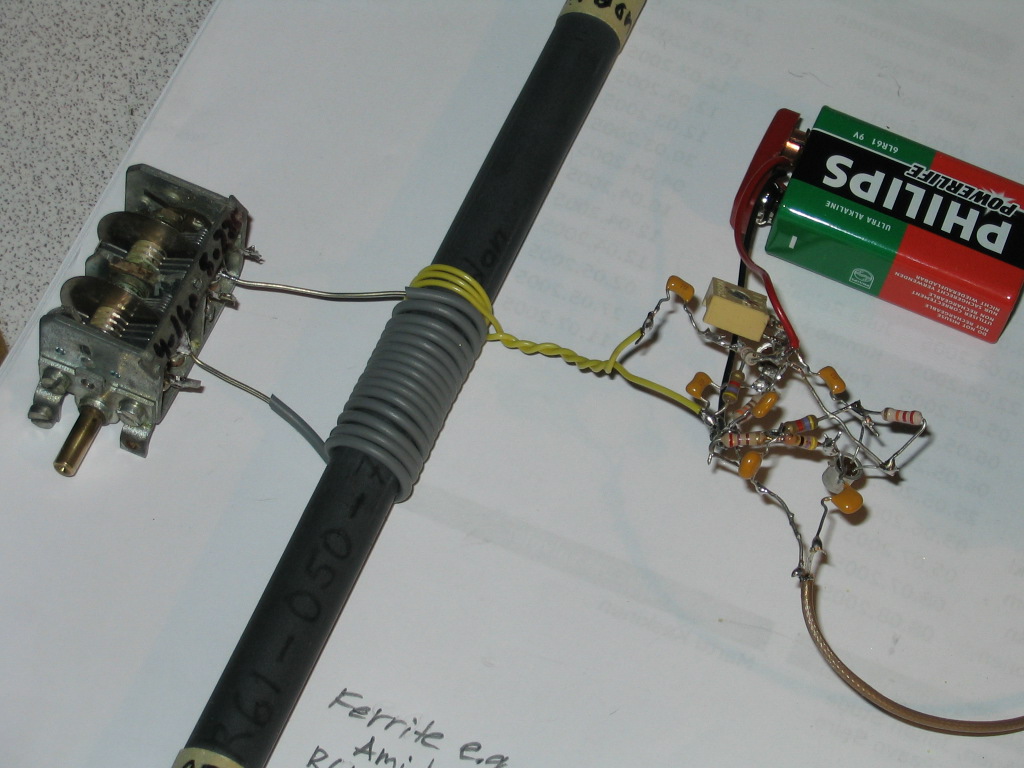

Ferrite rod antenna, close view

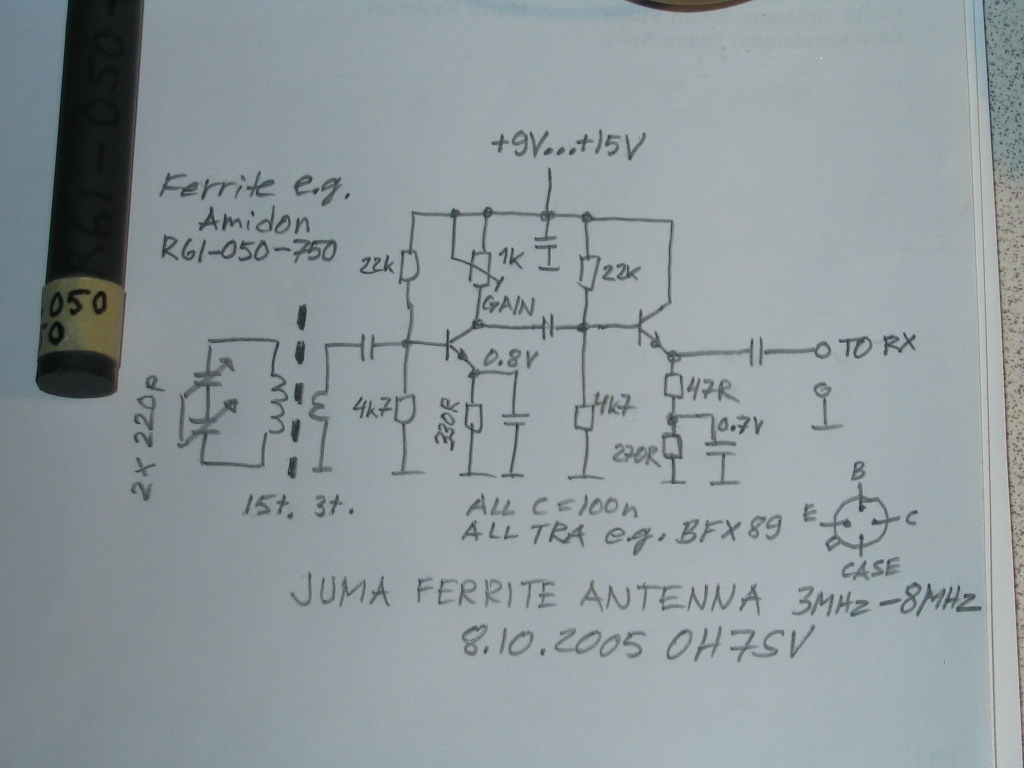

Ferrite rod antenna, preamplifier schematics

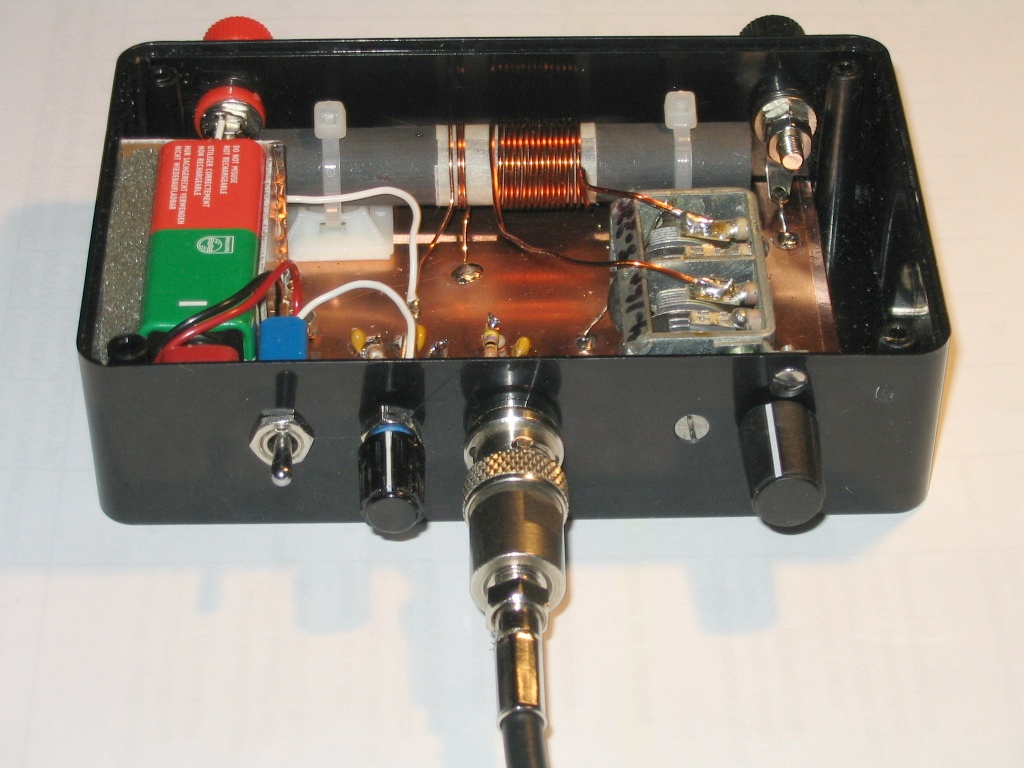

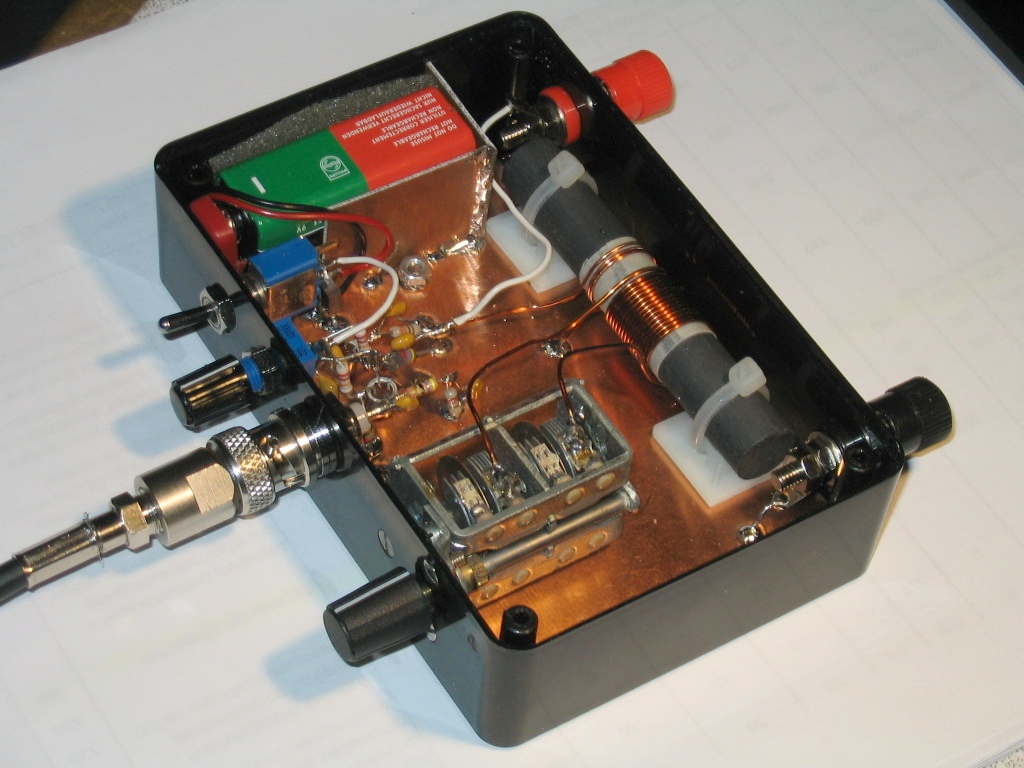

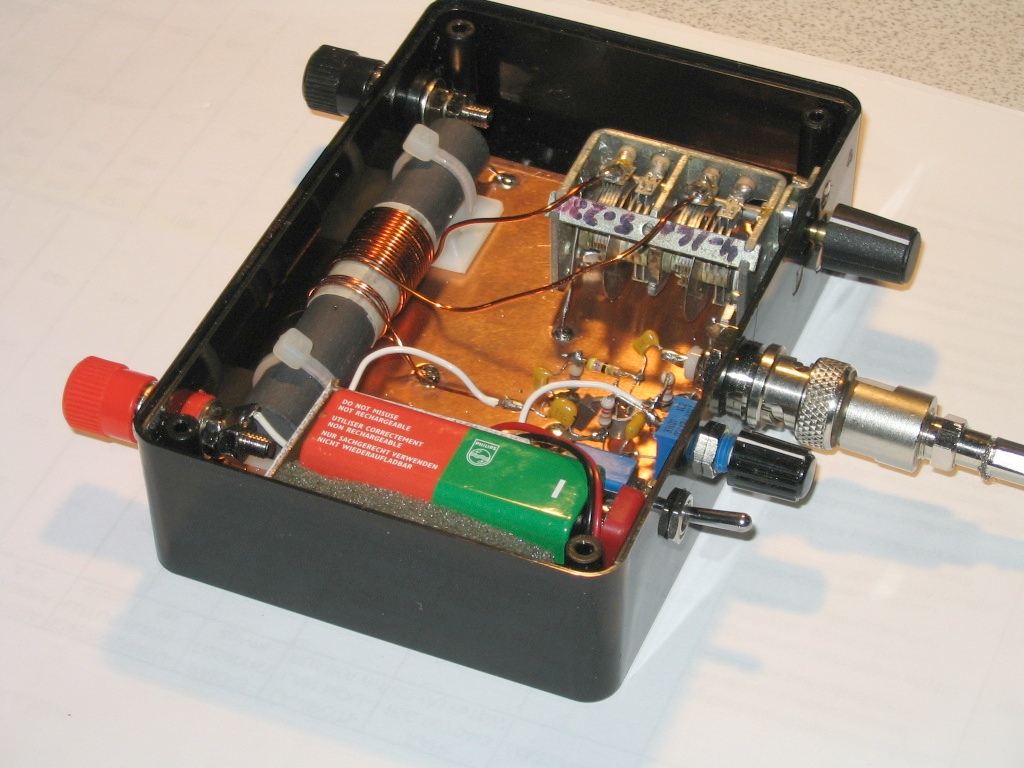

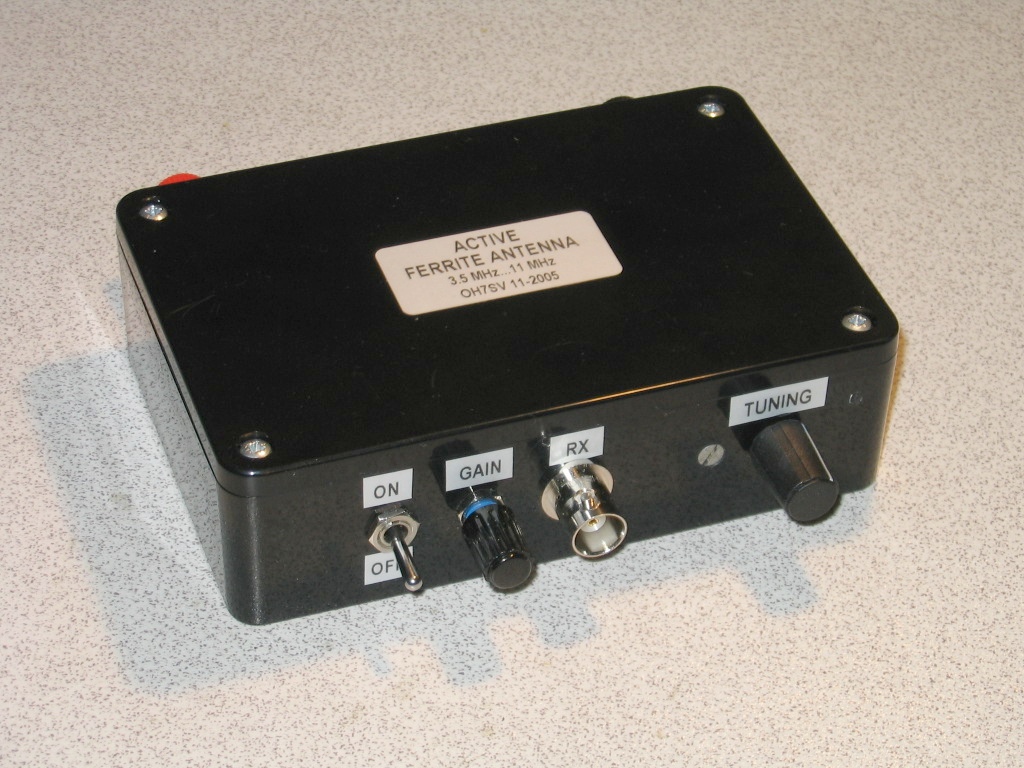

Enclosed Active Ferrite Antenna for 3 MHz...12 MHz, 07.11.2005 OH7SV
Img_1822.html Img_1823.html Img_1824.html

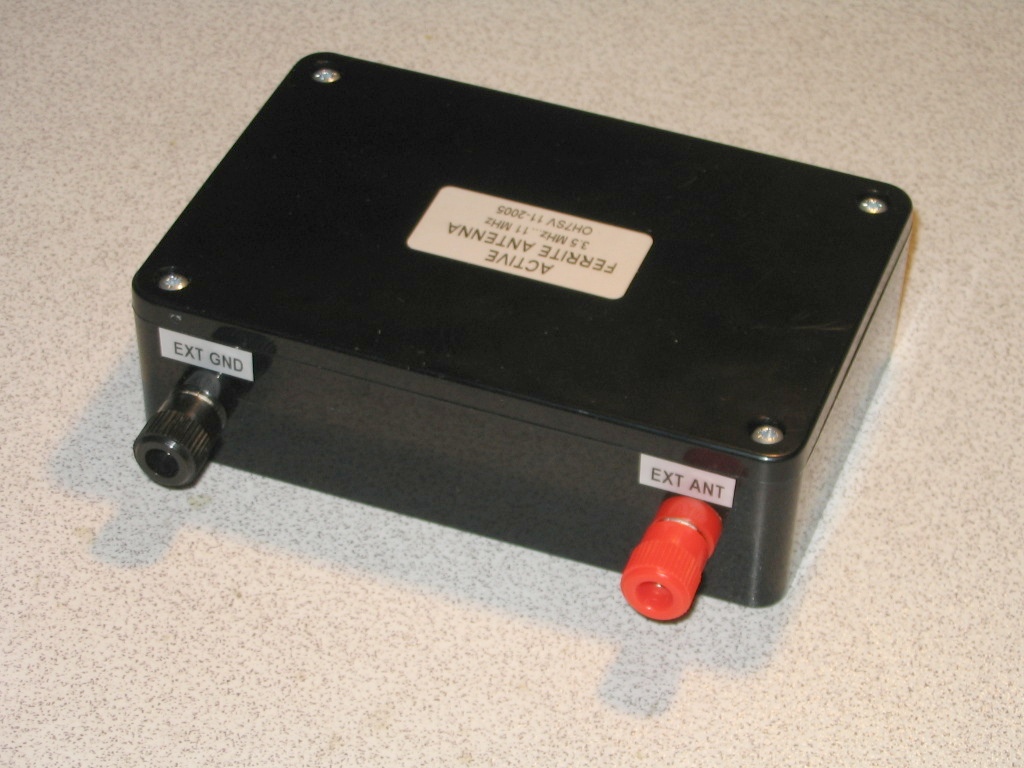

The red connector is for an optional external antenna wire and the black connector is for a ground wire. The red is wired to secondary winding and the black is connected to the circuit ground plane. Additionally two by-pass capacitors (100n) are soldered from different +9V locations to the GND plane for stability in high gain setting. The ferrite is Amidon R61-050-300. Click the pictures.
