JUMA TRX2A SSB-CW transceiver General JUMA TRX2A
is a high dynamic range transceiver for SSB
and CW, using the quadrature sampling technique for demodulation and modulation
with the low noise phasing method. JUMA TRX2A includes a DDS controlled
VFO for a good frequency stability and signal purity.
An internal microcontroller is controlling all
functions of the transceiver.

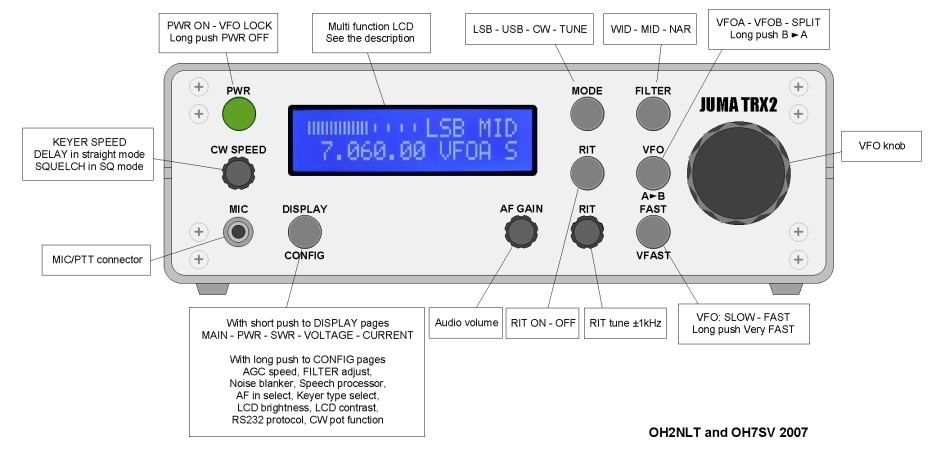

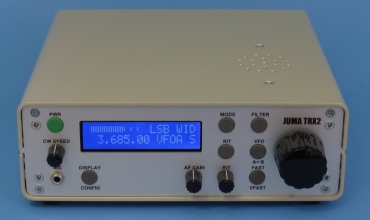

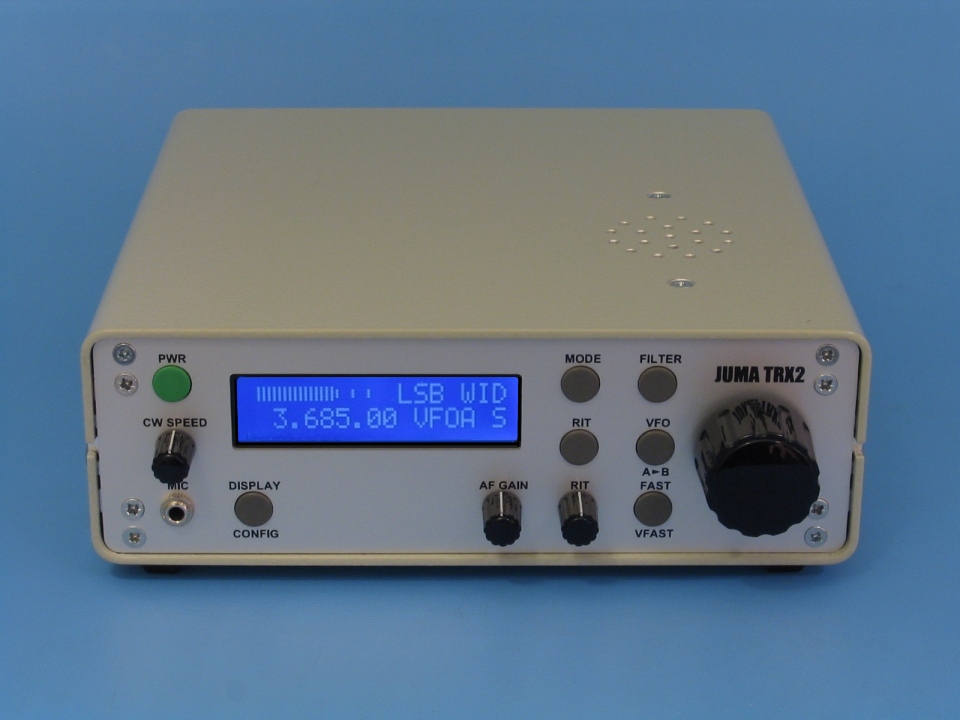

JUMA TRX2A is available as a discrete kit with components and bare circuit boards. The enclosure is machined and printed. Only few coils need to be wound when constructing JUMA TRX2A. A completely assembled transceiver and other building help is also available with the help of the JUMA community. JUMA TRX2A user interface. Click the picture to see full size.
Main

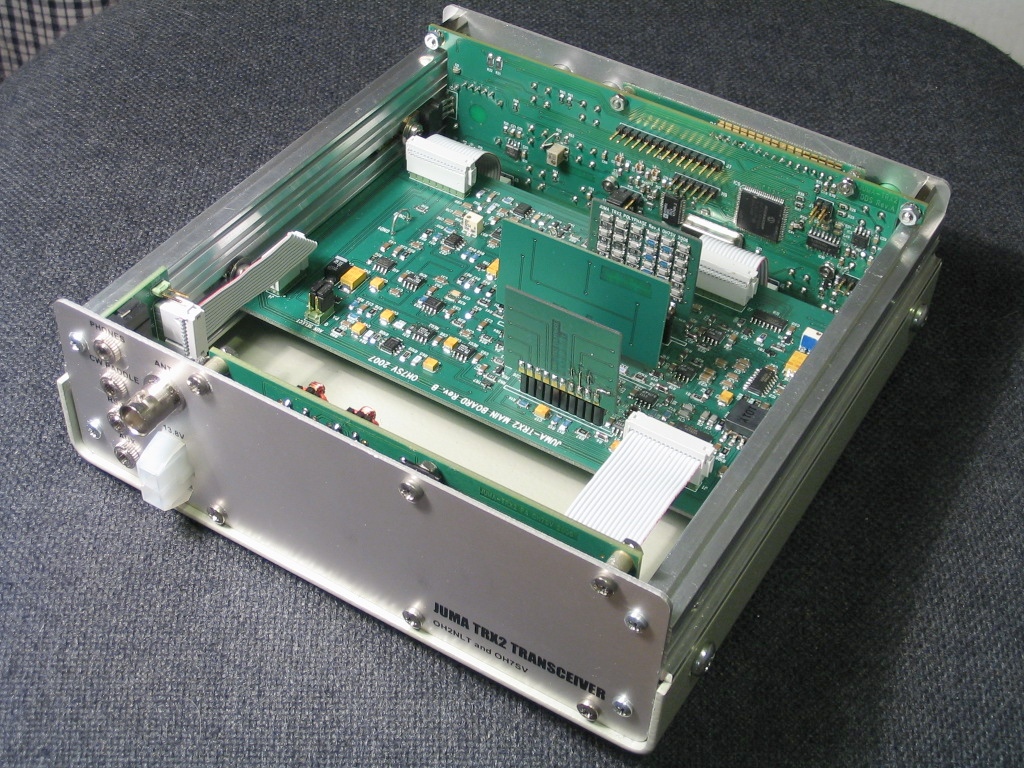

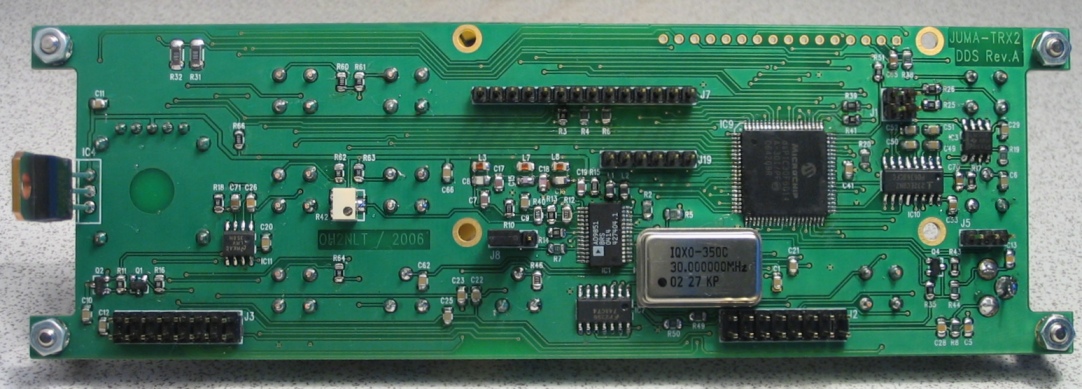

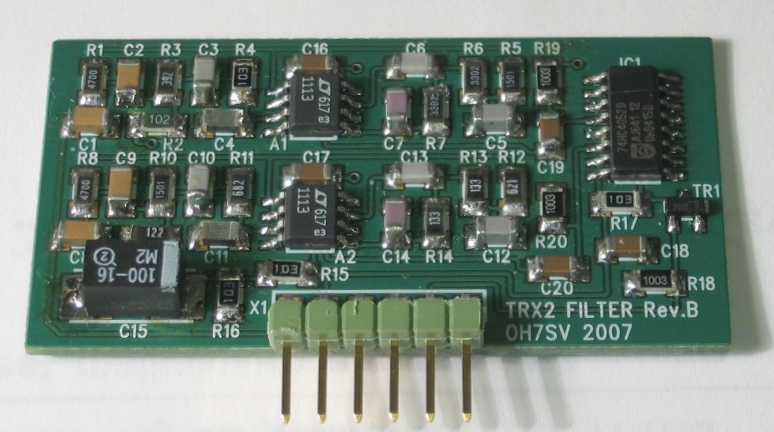

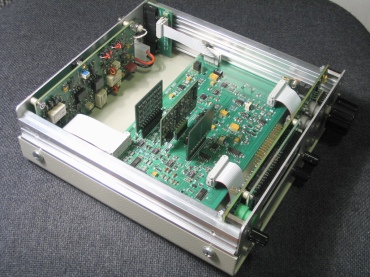

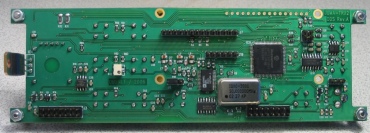

Display page Alternate display pages Board interconnections are made using flat cables. The 1st AF filter and the polyphase modules are plugged to the main board. The DDS board is mounted to the front panel. The Main board is mounted horizontally to the aluminum profile. Configurable features The microcontroller and the DDS chip are on the bottom side Options All the buttons and the pots are on the top side of the DDS board Service/calibration
mode
Power
supply
|

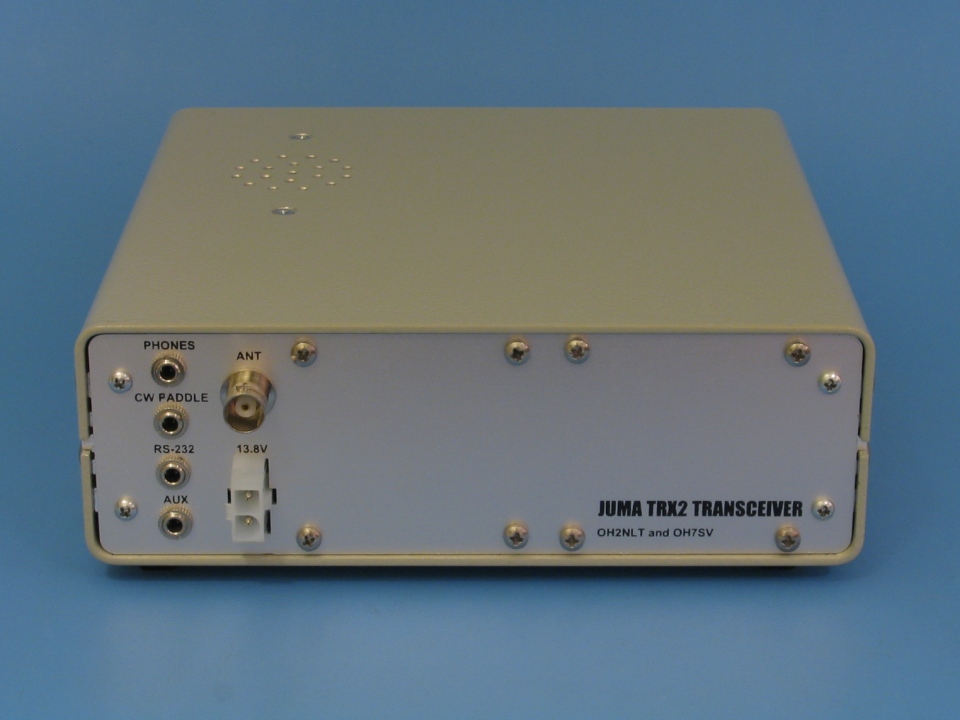

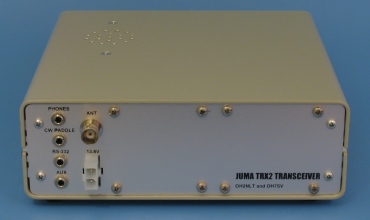

The rear panel See more photos here Features All ham bands 160m-10m including WARC bands, RX 100-30 MHz Transmit modes LSB, USB, CW and TUNE Output RF power 10 W RF output, SWR, voltage and PA current displays in LCD Built in keyer: Dot priority, Iambic A, Iambic B and straight modes Good clickless CW keying with adaptive release time Three filters: Wide, Medium and Narrow with a good shape factor The filters are user adjustable, see the diagram here. Outstanding dynamic range and good sensitivity Excellent AGC with slow and fast modes First-class optical VFO encoder with 480 steps per revolution 7 digit frequency display with 10Hz display resolution Three selectable VFO tuning speeds Slow/Fast/Very Fast VFO lock feature RIT and XIT (long push) with own tuning knob Graphical S-meter range S1...S9+40 dBm Non volatile memory for VFOs, modes, settings and calibration Click to see the exciter block diagram (pdf)

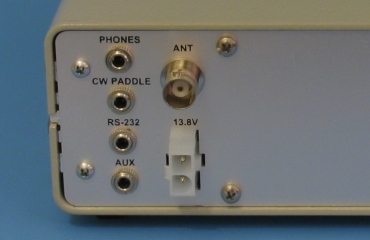

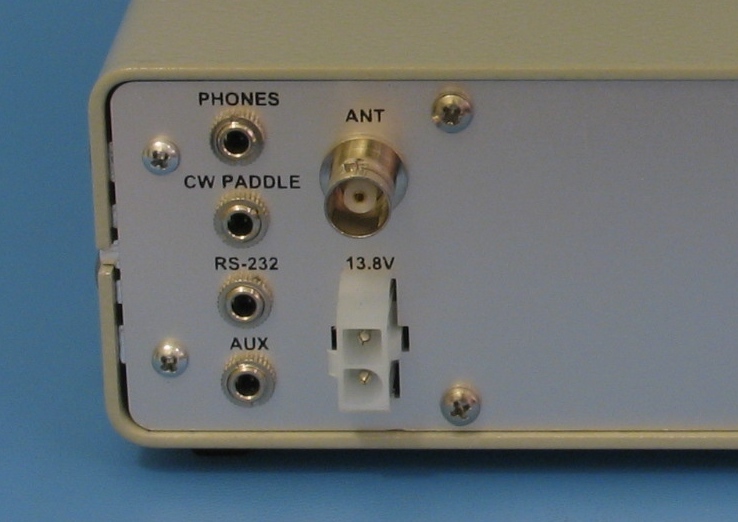

Close-up view of the connectors

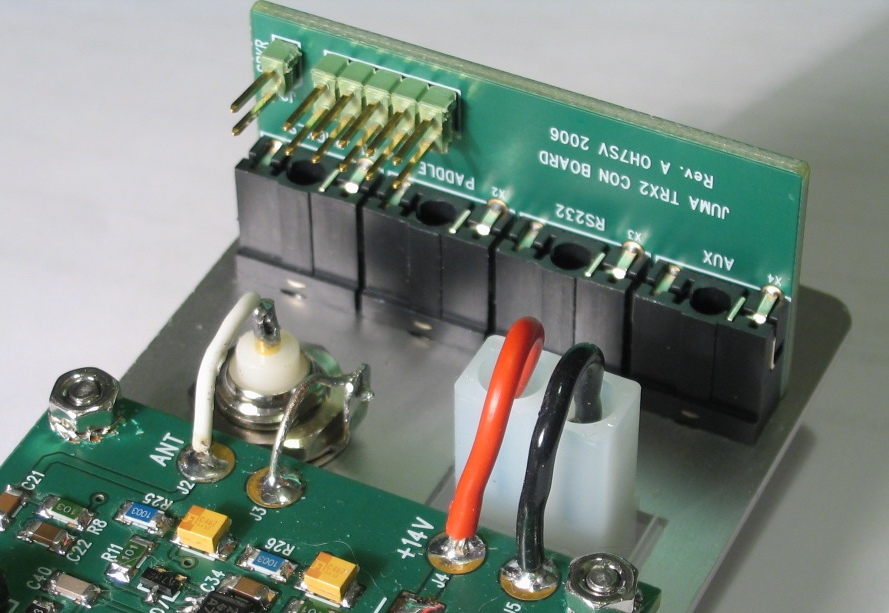

Connector board detail. Only four wires need to be soldered, others are flat cables using IDC connectors.

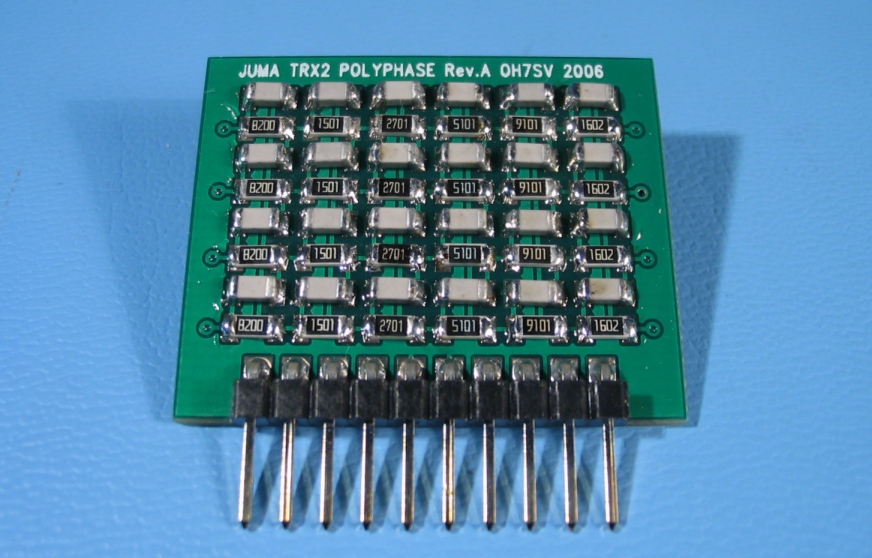

The polyphase module Weight:
Specifications |
