JUMA-TRX2
Voice Memory option has the following features
-
Recording from microphone
-
Recording from JUMA-TRX2 receiver
-
Playing a recording with JUMA-TRX2
speaker as output
-
Transmitting a recording in
LSB or USB
-
Stop an operation at any time
Memory capacity
-
Memories 1...9
10 seconds each
Memory 0
120 seconds
Hardware installation of
the JUMA-TRX2 Voice Memory option
-
Install JUMA-TRX2 Voice Memory
option board into into the pin headers on DDS board inside the JUMA-TRX2.
Note, remove the audio jumper from pin header J8 (pins 1-2) before inserting
the option board..
-
Connect the RS-232 cable between
the JUMA-TRX2 and the PC. See the cable wiring diagram.

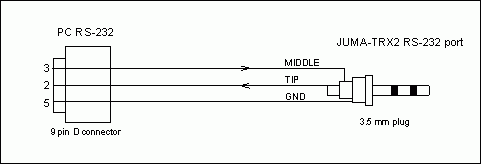

JUMA TRX2 RS-232 cable wiring
diagram
JUMA-TRX2 settings
Go
to the JUMA configuration pages with a long CONFIG button push. Go to the
RS232 page with short pushes and select "RS232 = VoiceMem" with VFO knob.
Instructions to use the JUMA-TRX2
Voice Memory control Windows control software
-
Select a com port from the Com
menu. Com setting will be saved for the next session
-
Select a function (MIC record,
RX record, Play or Transmit) by clicking the corresponding button
-
Click a memory number to activate
the operation
-
Click Stop to cancel an operation
if needed
A beep tone will be heared from
Juma speaker when a command is received.
Alternatively all the operations
can be activated by keyboard (small or caps)
-
MIC record M
-
RX record
R
-
Play
P
-
Transmit
T
-
Stop
S
-
Memory
1,2,3,4,5,6,7,8,9,0
Updating the Voice Memory
Windows software version
-
Uninstall any older version
of the software by using Windows Add/Remove Programs in Control Panel
-
Install the new version by running
setup of the new version
