1. Fold the MOSFET legs up

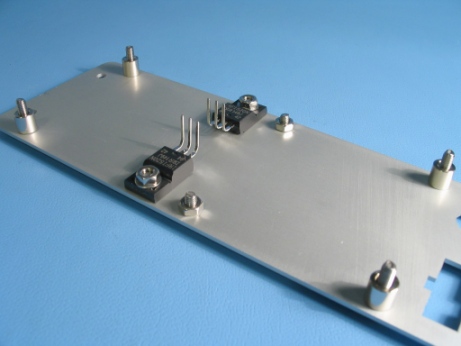

2. Fix the MOSFETs to the rear plate and insert the hardware for the PA board
(The two blocked up holes by screws/nuts are for the all band pa MOSFETs)

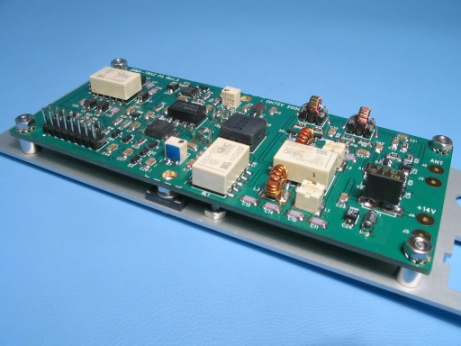

3. Attach the PA board

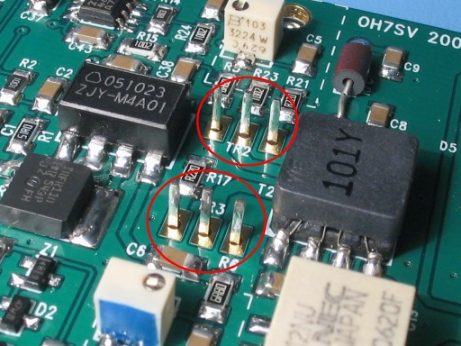

4. Solder the MOSFET TR2 and TR3 legs
1. Fold the MOSFET legs up |
2. Fix the MOSFETs to the rear plate and insert the hardware for the PA board (The two blocked up holes by screws/nuts are for the all band pa MOSFETs) |
3. Attach the PA board |
4. Solder the MOSFET TR2 and TR3 legs |
2007-10-09 OH7SV
