JUMA TX500 Spurious ouputs 2009-09-04 OH7SV

Test conditions

• Carrier 60 watts to 50 ohm to dummy load
• Measured with 40 dB attenuator
• Level detector JUMA TRX2, calibrated with HP8642B signal generator

Results

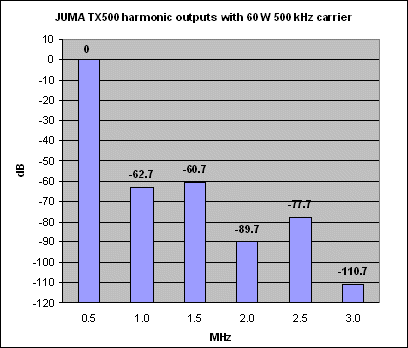

JUMA TX500 harmonic ouputs, carrier 60 watts 500 kHz

Signal	Relative	Power
1f (fundametal)	0 dB	60 W
2f	-62.7 dB	32 uW
3f	-60.7 dB	51 uW
4f	89.7 dB	64 nW
5f	-77.7 dB	1.0 uW
6f	-110.7 dB	0.5 nW

Amateur radio regualtions concerning spurious ouputs (Finland)

• Below 30 MHz spurious signals must be at least 40 dB below fundamental and max spurious peak power is 10 mW
• Above 30 MHz spurious signals must be at least 60 dB below fundamental and max spurious peak power is 25 uW

JUMA TX500 complies very well with the regulations.
