JUMA TX500 main module power supply socket wiring
Last update 2009-08-01 OH7SV

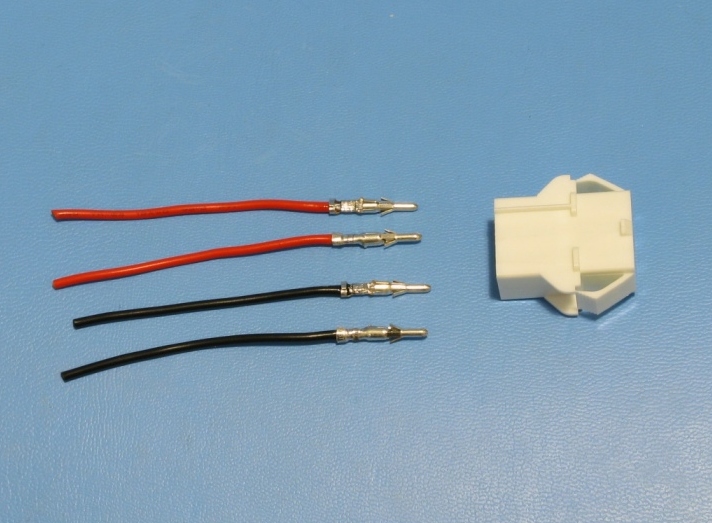

Use male pins in the main module socket.
Peel, crimp and solder the wires to the pins.
Click picture to enlarge.

Refer also to the main module picture here
