Marelli Weber IAW04E

Lancia Delta Integrale ECM

Project updated 26.12.2003

Background

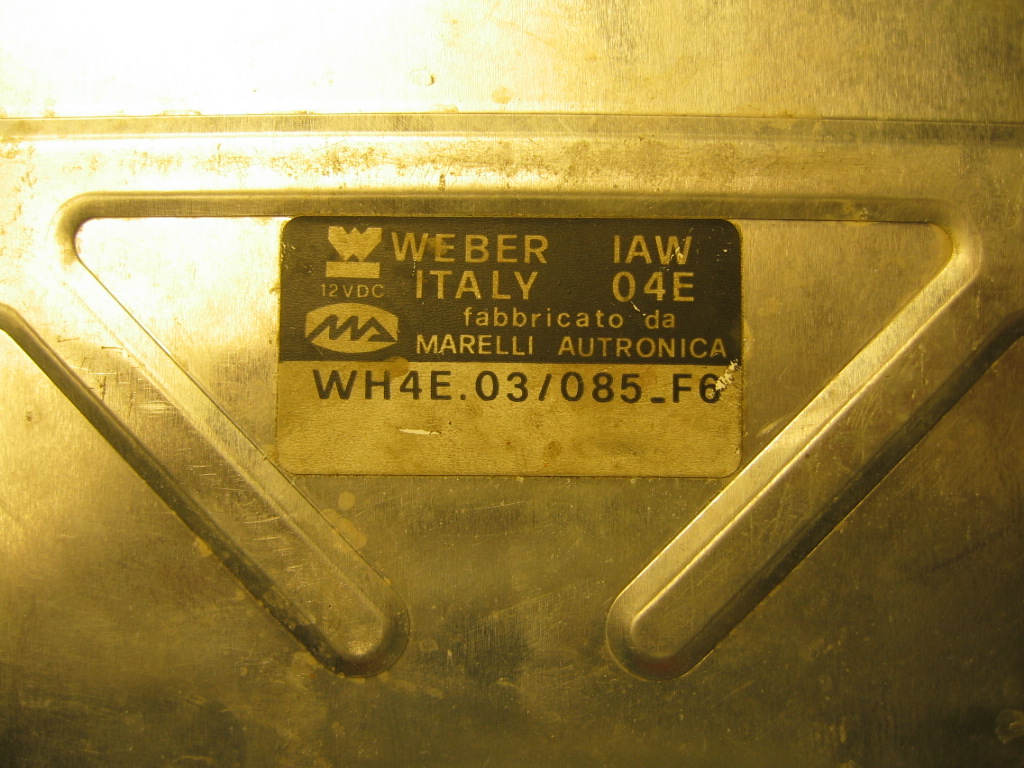

My friend bought old Lancia Delta Integrale Ralley car. Unfortunately car suffered some running problems. I promised to help him but did not find any information about Marelli Weber IAW04E ECM running the engine. Had to start from scratch. As I am writing this only part of the work is done and things have only tested with ECM on the desk.

Project

I set target for myself to make tester or test environment to be able to read ECM diagnostic data. Most of this is currently working.

ECM can send fault codes by flashing check engine light. This mode is entered sending break or shorting RX data.

ECM can send diagnostic information upon request. More about this in software comments.

ECM can perform some actuator tests. More about this in software comments.

ECM operates with 7812,5 baud speed. I decided to make baud rate converter board with LCD display. Later my intention is to use this same board for in car display.

ECM

Binary file

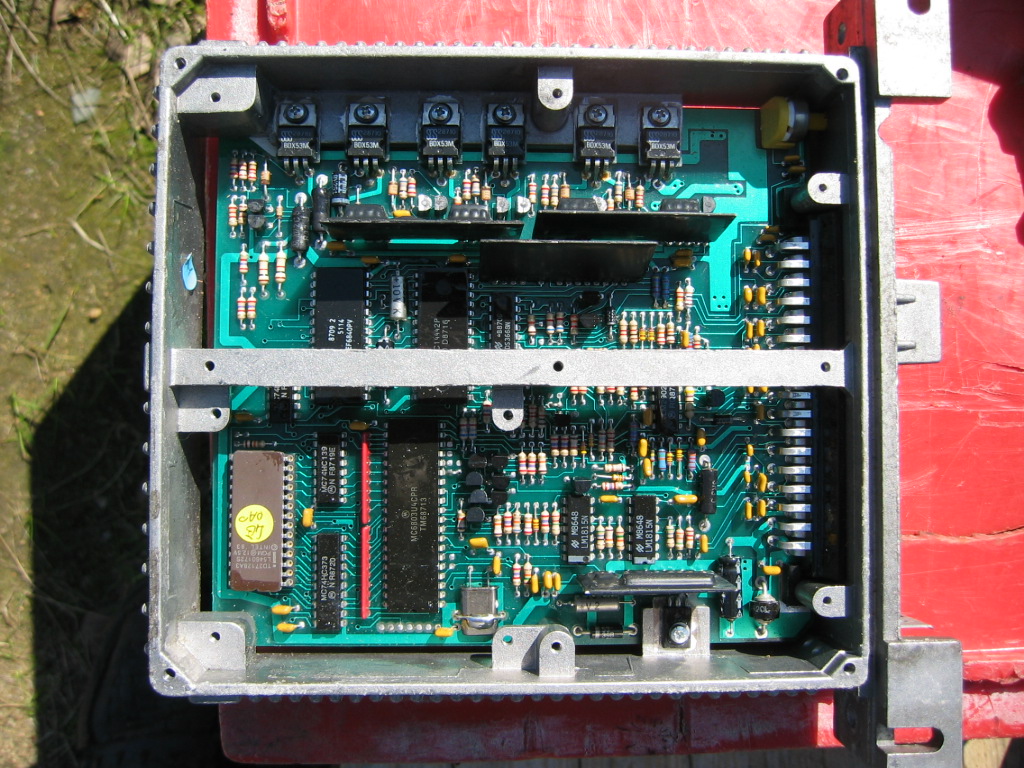

I have partially disassembled binary file from this particular ECM. My only goal was to find out diagnostic commands and responses. I have completed about 80% of this work. Disassembly is done with DHC11 disassembler.

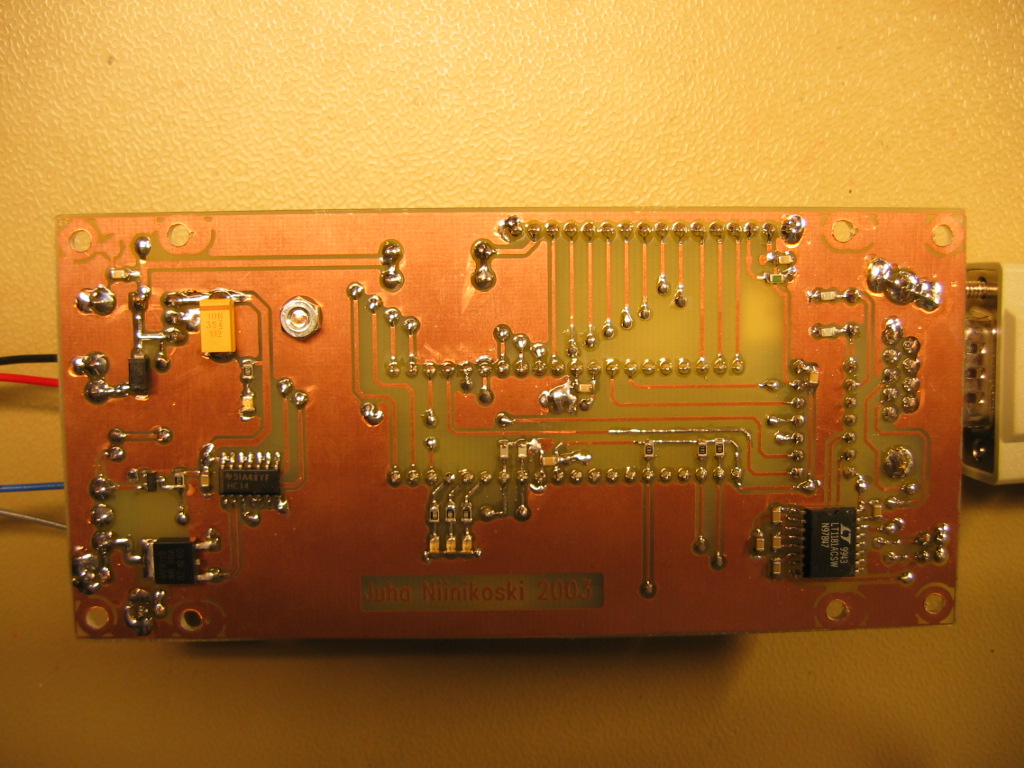

Baud rate converter

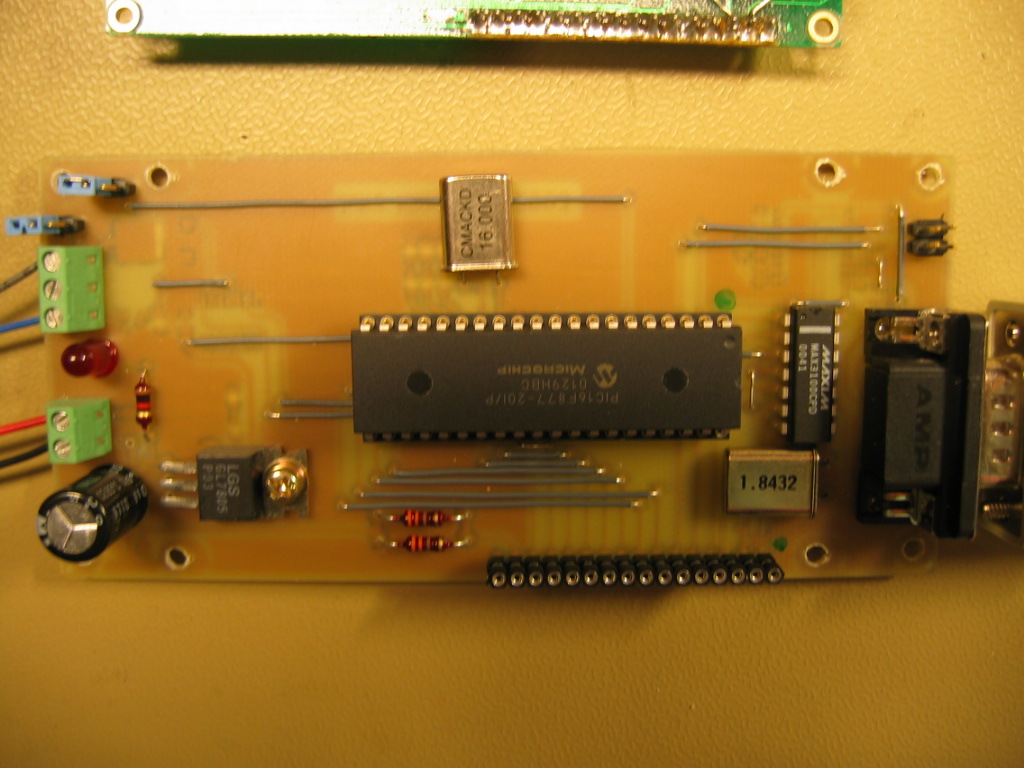

LED D8 on the converter board acts as check engine lamp. Jumper J4 can be used to initiate flash lamp communications.

Test Display

Test display and console is Visual Basic software running in PC. Current version is only for test commands and responses. There are still some undecoded fields in communication protocol. This test code is done with VB6.

If you know anything more about this ECM I am pleased to hear.
