40 meter Door Frame Loop

This is a medium to long range antenna for 40 meter band. The gain at 35 deg elevation is better than 6dBi.
Directivity is abt 10dB - 15dB between the main and side lobes. You can put it higher to get even better low angle radiation.


The shape has been adjusted to provide direct 50 ohm impedance.

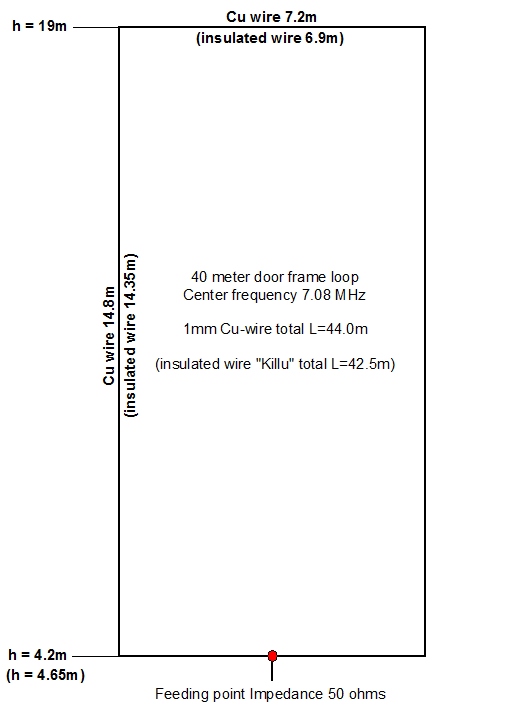

Note 1. The dimension in parenthesis
are for insulated wire eg "Killu".
Note 2. A common mode choke balun is recommended in the feeding point.
Note 3. This is not a good NVIS antenna. For NVIS put up a horizontal
loop or a dipole at 8m height.

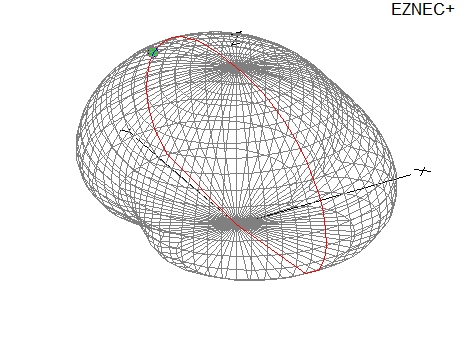

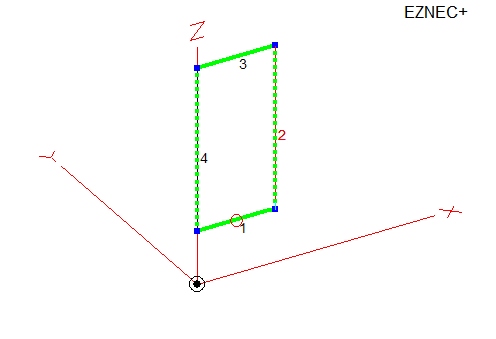

Antenna orientation                                                                                                3D radiation pattern plot

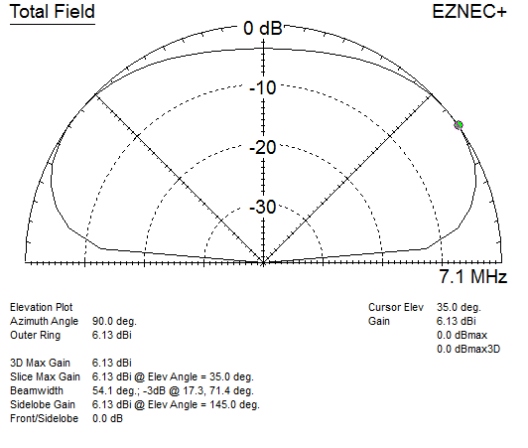

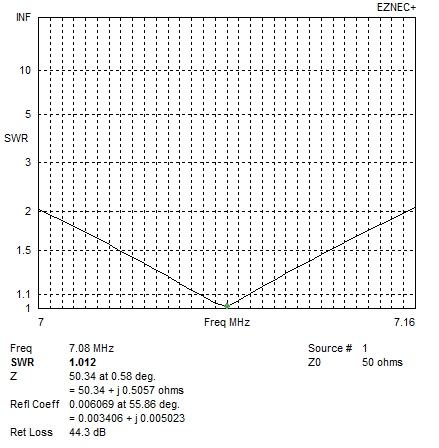

  Elevation plot                                                                                                 SWR

Update 2021-04-29 OH7SV
